Look Twin adjustable LED downlight

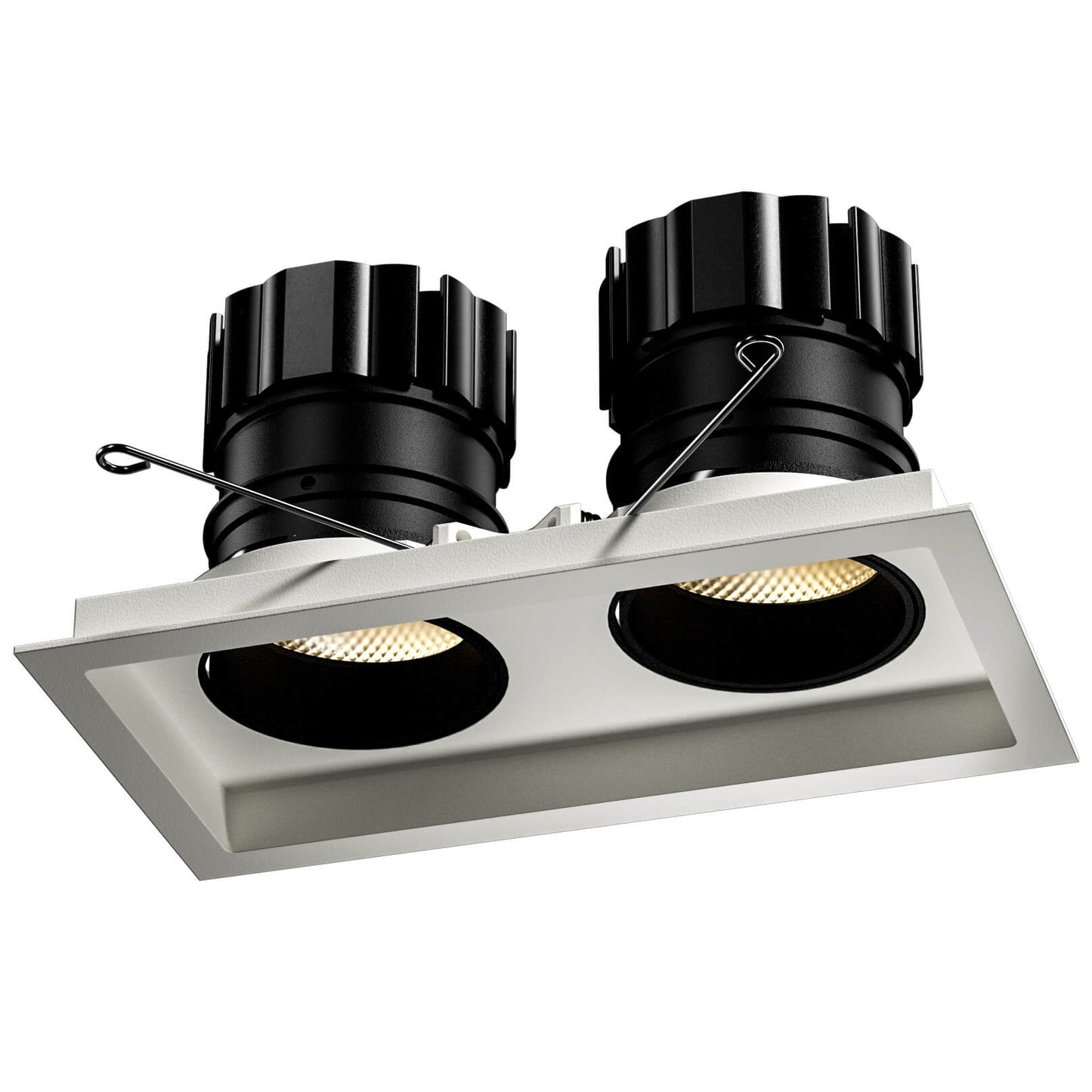

A rectangular twin LED downlight with 28° tilt and 360° rotation.
Product Info

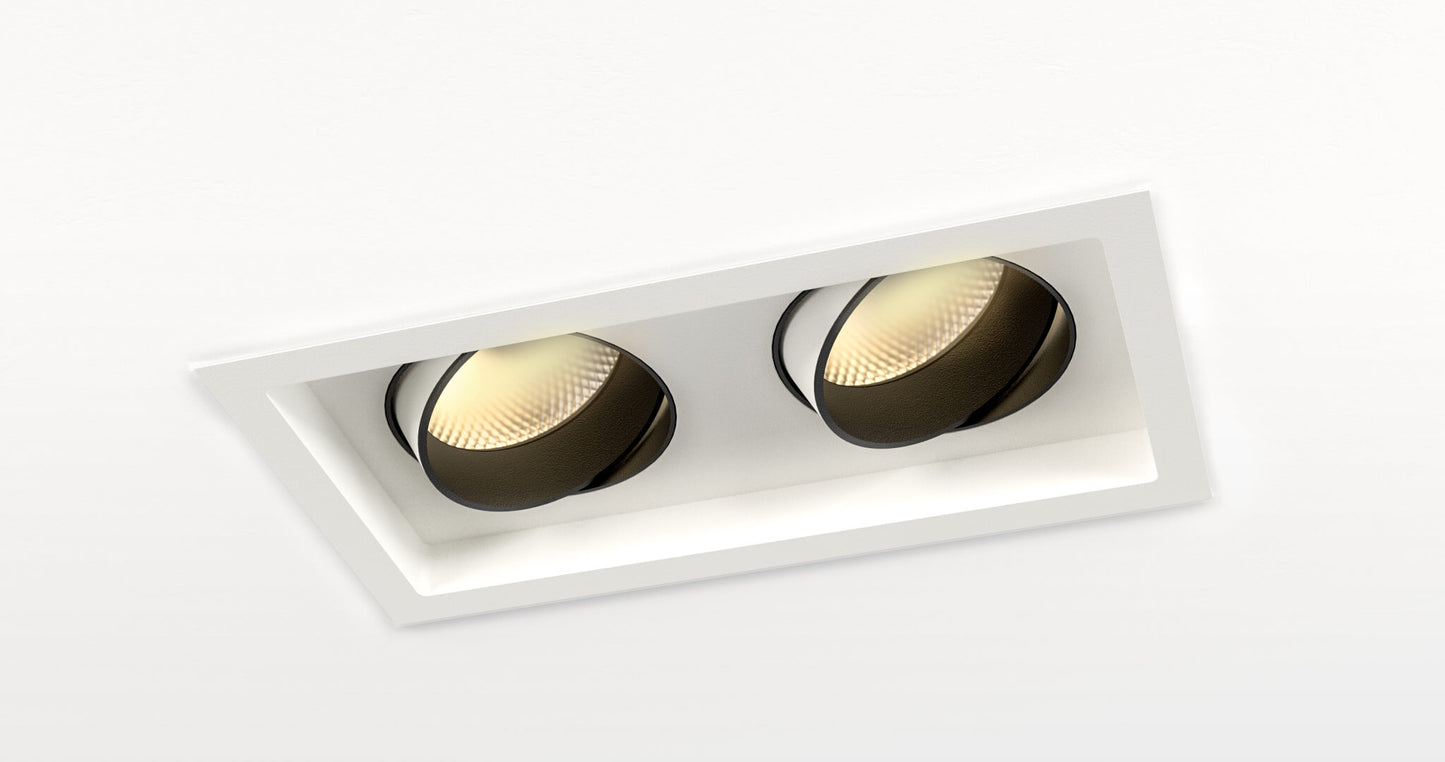

A rectangular twin LED downlight with 28° tilt and 360° rotation. The neat bezel makes the fitting very discrete. Ideal for kitchens and other task lighting
Look Twin is totally customisable with choices of LED colour, lenses, IP rating all with great dimming performance.
As standard each light engine typically delivers 1013 lumens with a CRI of 98. The LEDs used within the Origin range give exceptionally high colour rendering and the best red rendering, CRI: 98 & R9: 99. Reds are highly important in accurate representation of many colours including true whites.
Two drivers are required per fitting, one ofr each engine. Select your driver from the list of options.
Unusually the Origin range of fittings can be dimmed well without using a lighting control system: use the recommended mains trailing edge driver and a recommended Quad rotary dimmer (more details are given after you have added fittings to your Basket).
Longevity is achieved with very good thermal management: the fittings have a 70,000 life expectancy and a 5 Year fitting warranty.
Designed and made in the UK.
Technical Info
Technical Info
Part of the Lookfamily meaning you can mix this twin fitting with the single Look Adjustable models in areas where the extra light is needed whilst keeping the look consistent across the scheme.
Flexibility
The Look Twin provides freedom to customise every spotlight individually. As well as being able to choose the LED colour and lens angle you can also choose the IP rating of the fitting meaning you can achieve the same look throughout even if the fittings are within different IP zones. The unique IP rating on an adjustable downlight is achievable by the use of a flexible rubber seal ‘gaiter’
Finishes
Available in a range of standard and bespoke finish options for the whole luminaire. Standard White is RAL9010 fine texture with 20% gloss and there is an option of Black RAL9005
Products are also available in:
- Polished Chrome
- Brushed Chrome
- Antique Chrome
- Polished Brass
- Antique Brass
- Polished Copper
- Antique Copper
- Antique Bronze
For a totally customised finish we can offer any other RAL colour (setup charges may apply, please call for details)
Additionally, the anti-glare baffle can be any RAL paint, anodised or plated finish. Note: the insert will always be white
Output
Max output (Lumens) at 3000K
Spot:- 604lm
Medium :- 2026lm
Wide:- 2052lm
Flood:- 1998lm
Elliptical Linear:- 708lm
Driver options
Drivers can be located behind the downlighters cut-outs in the ceiling void, but take care to leave adequate void space around both fitting and driver
With an appropriate driver the fitting is dimmable via mains trailing edge, 0-10V and DALI or non-dim
Unusually the Origin range of fittings can be dimmed well without using a lighting control system: use the recommended mains trailing edge driver and a recommended Quad rotary dimmer (more details are given after you have added fittings to your Basket)
With 0-10V and DALI dimming you will need a lighting control system (for example Lutron)
Longevity
This is achieved with very good thermal management: the fittings have a 70,000 life expectancy and a 5 Year fitting warranty
