LD59 - square bezel recessed wall light
Single chip square bezel recessed uplight with no optic
Product Info

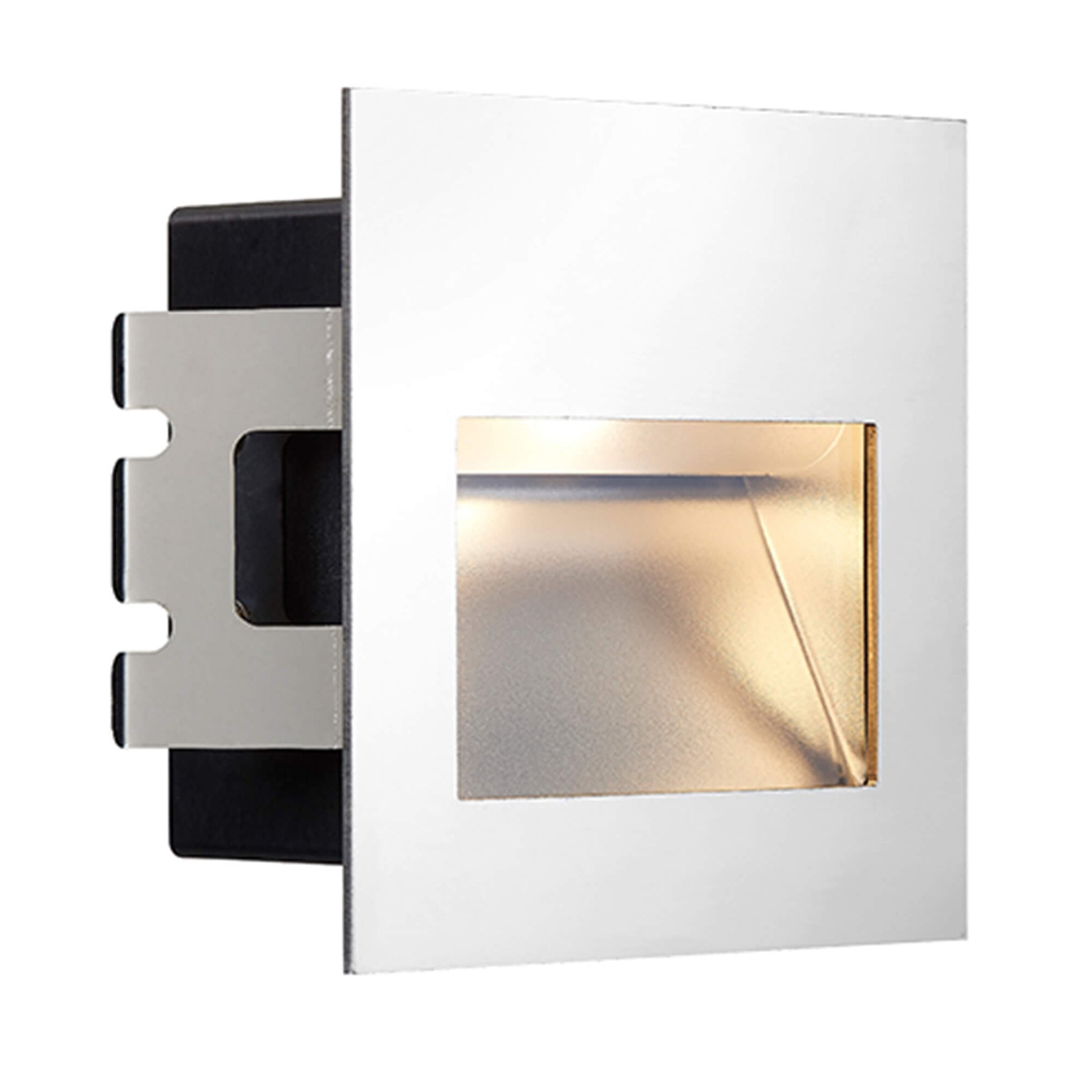

Low glare recessed wall light with a square bezel.
With a single LED and no lens optic the fittings gives a soft edge beam with no multiple shadows.
IP67 rated.
316 stainless steel bezel as standard also available in a range of paint finishes.

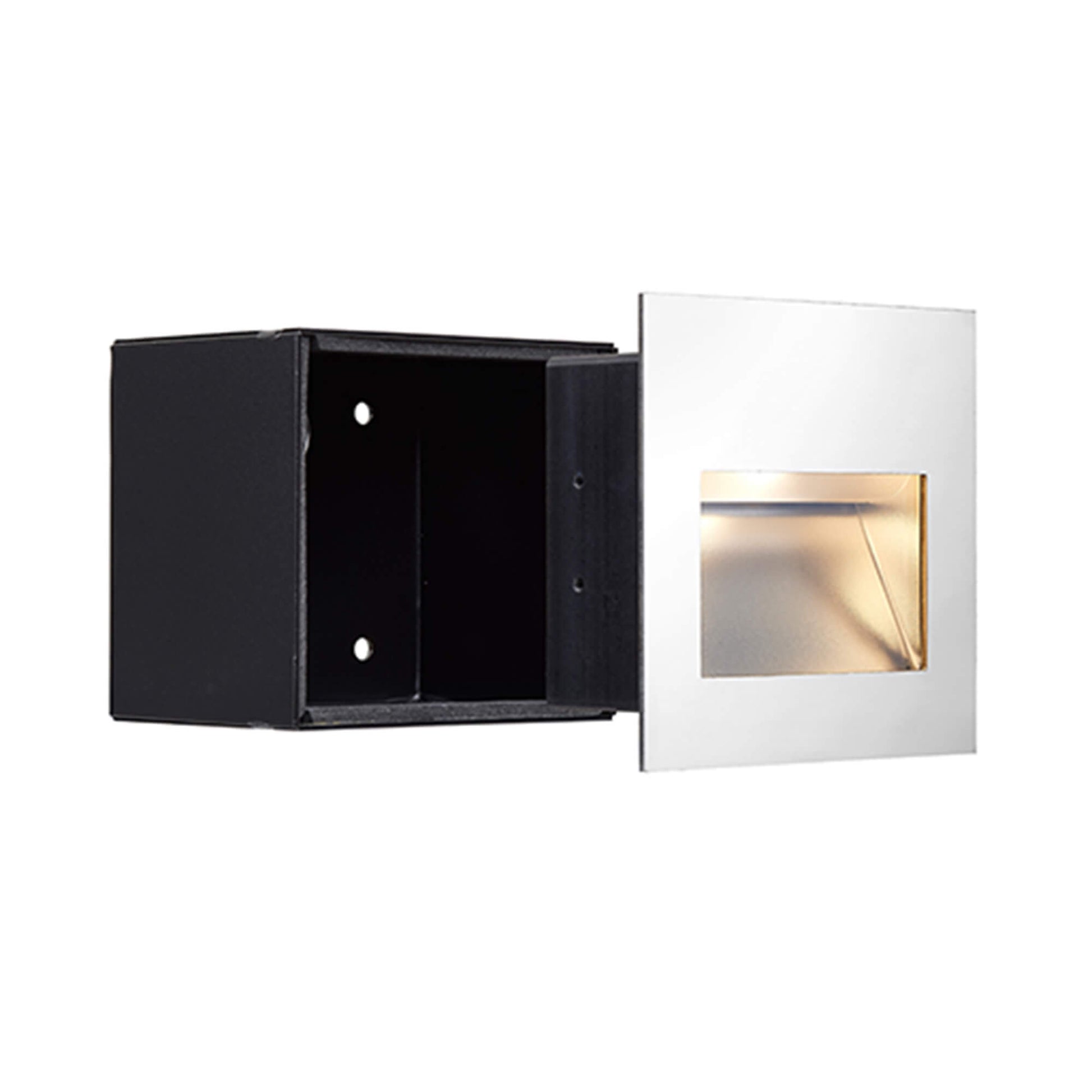

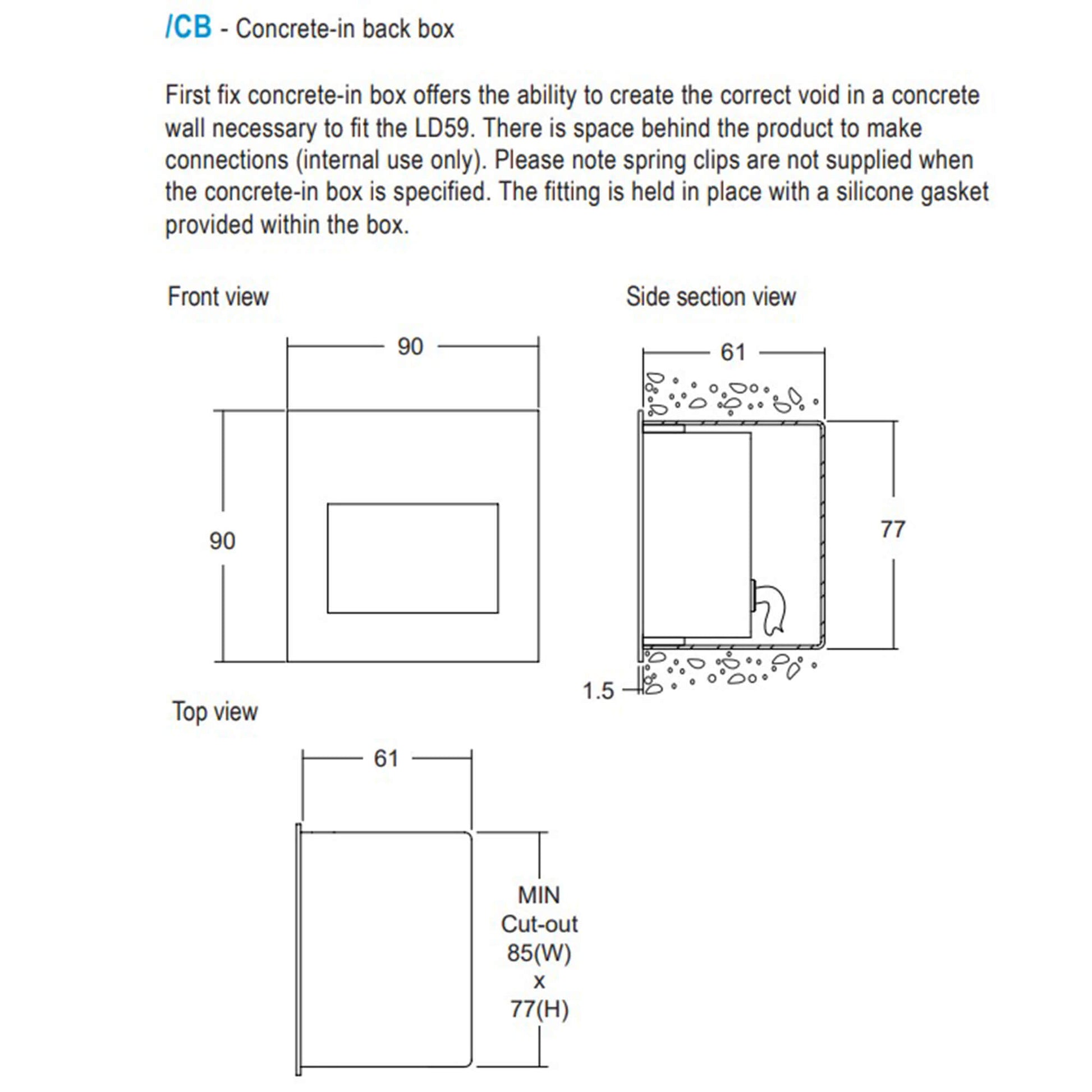

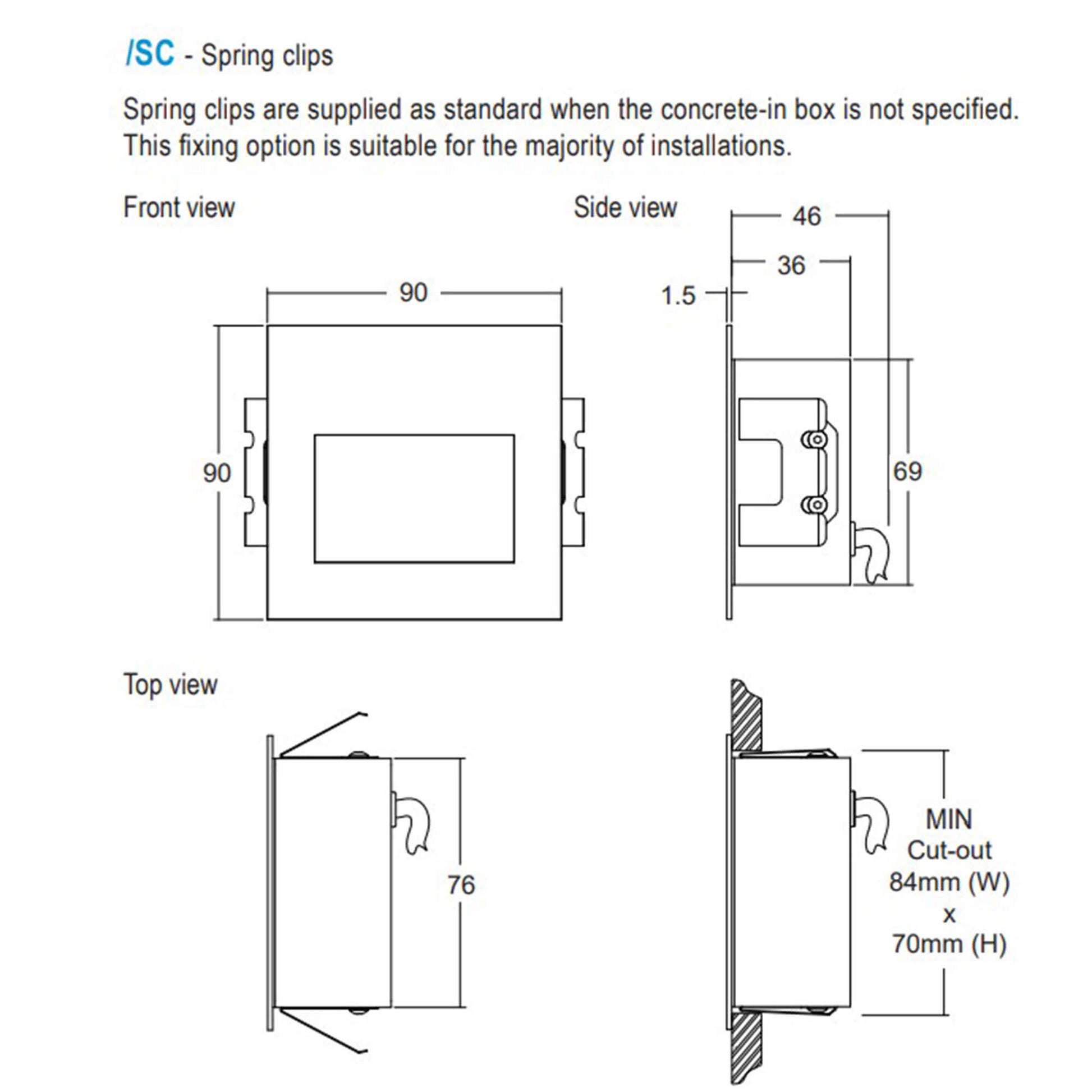

Supplied with spring clips as standard or a first fix concrete-in box offering the ability to create the correct void in a concrete wall necessary to fit the LD59.
Available with factory fitted longer cable to allow for cable runs back to the driver location for ease of installation or weather-proofing reasons.
Technical Info
Technical Info
Driver options
The LD59 is a constant current fitting which requires a driver to run it, drivers can run multiple fittings but fittings must be wired in series. With an appropriate driver the fitting is dimmable via 0-10V, DALI and Mains leading/trailing edge or non-dim. Please select dimming type on options tab above and that will take you through to a page detailing how many fittings you can run per driver.
Installation Notes
The fittings should be wired in series and the cable run between the driver and the fitting should not exceed 10m. The driver should be located somewhere discrete, allowing air movement and be accessible for maintenance
