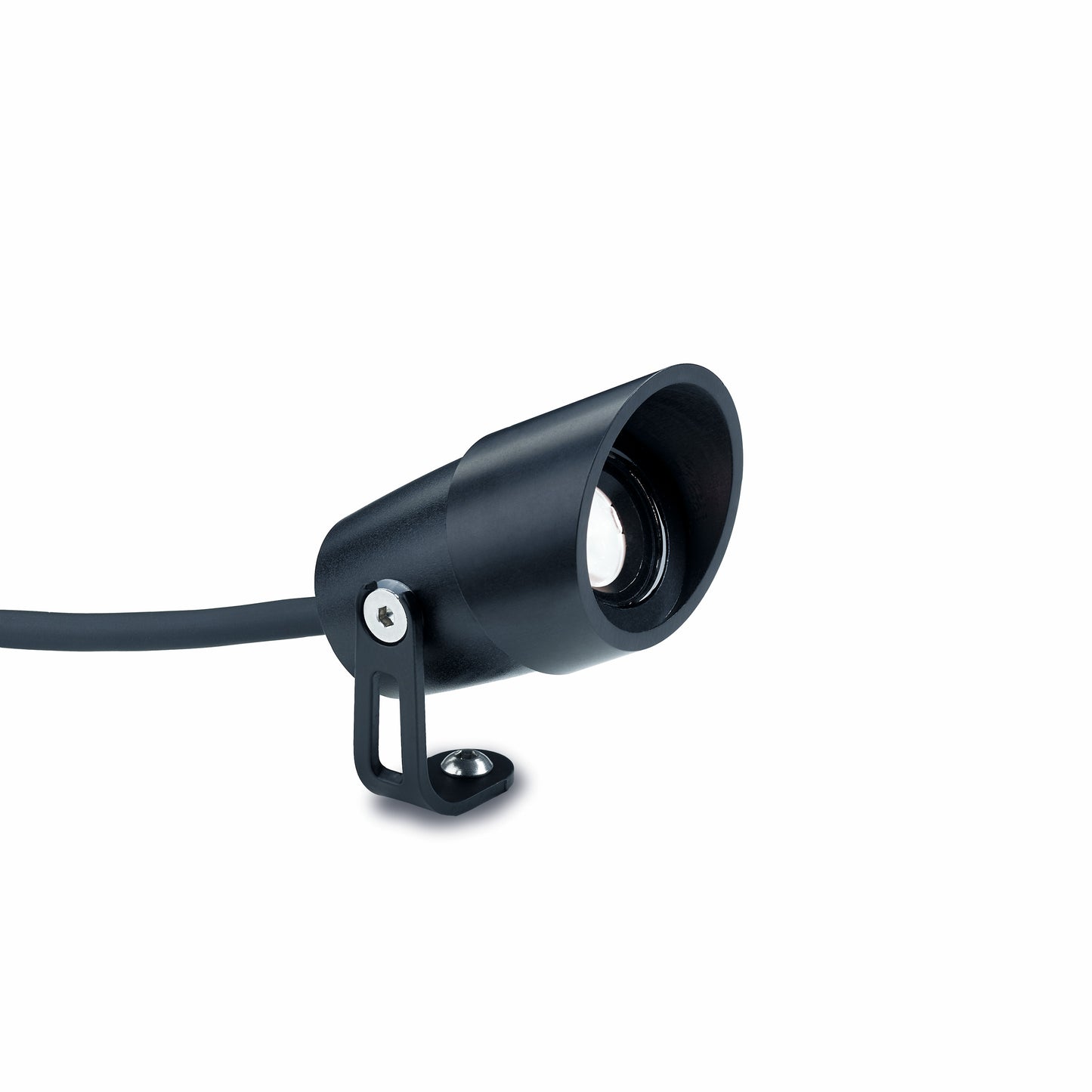

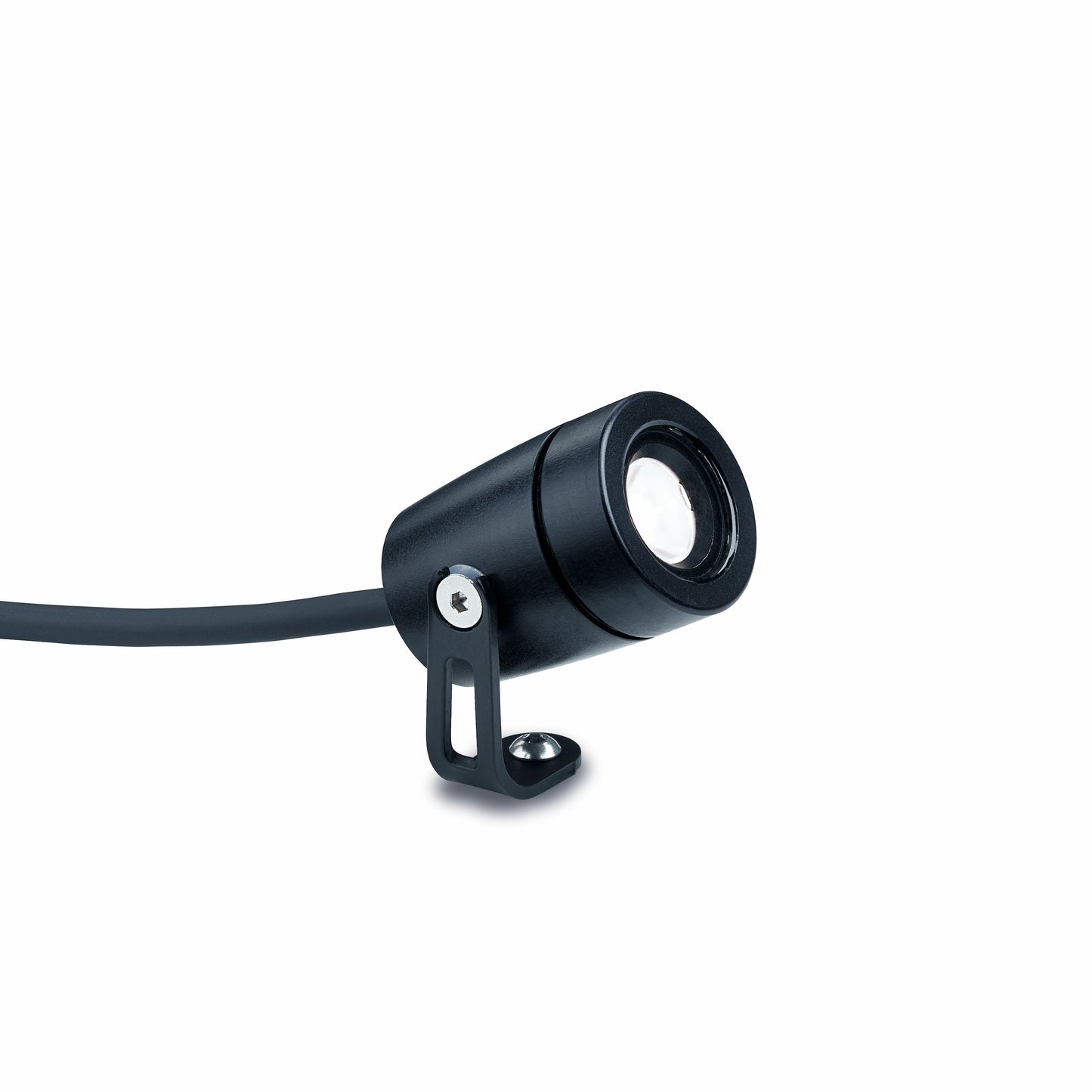

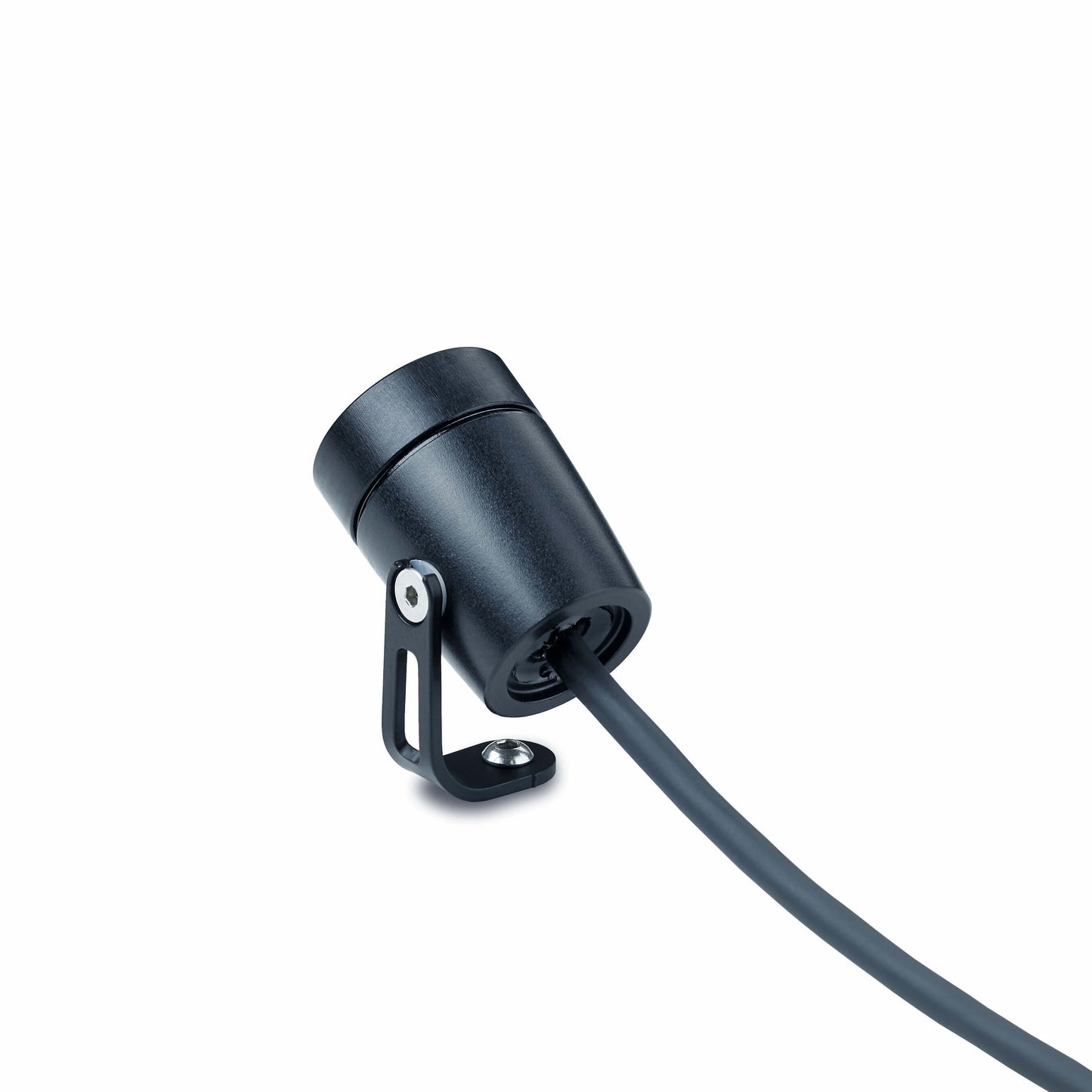

LD51 LED spotlight
Miniature adjustable spotlight, great for lighting beams or garden planting
Product Info
Miniature adjustable spotlight delivering 119 lumens light output. Great for lighting beams or garden planting.

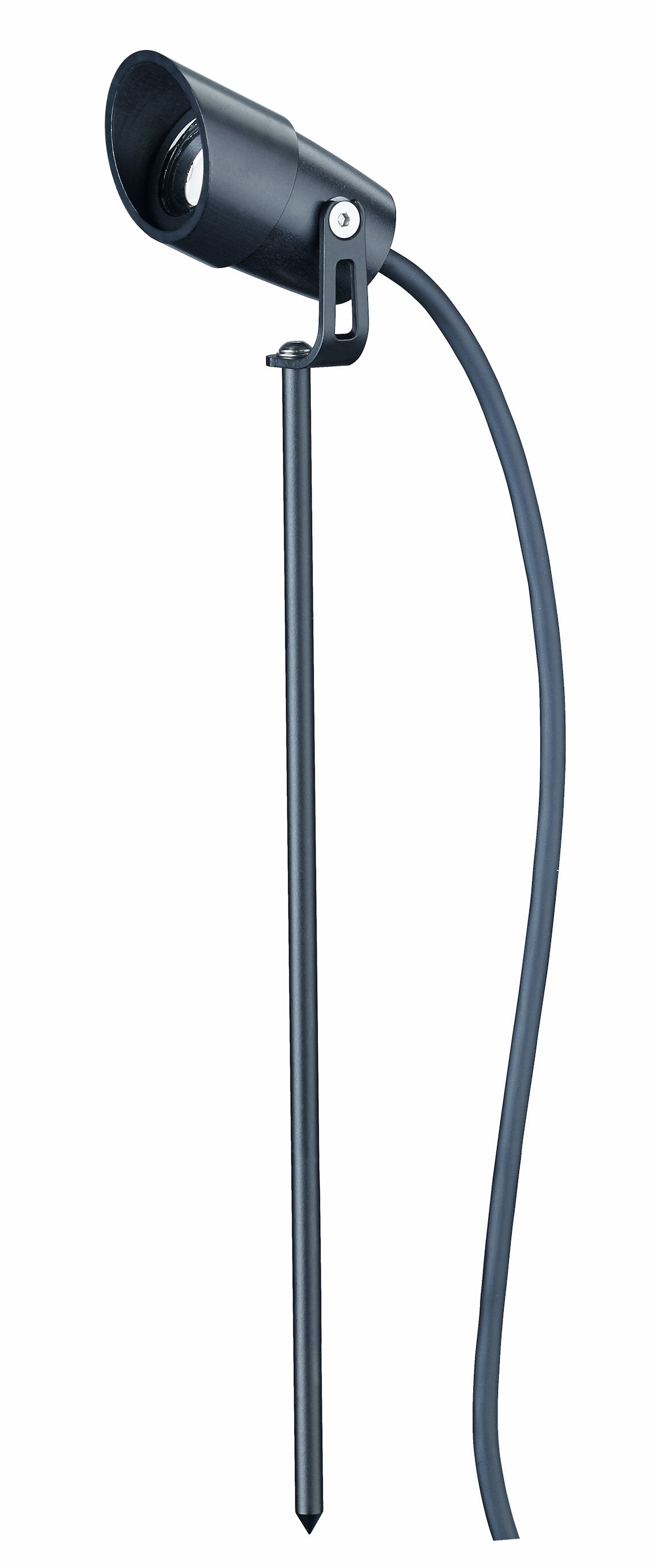

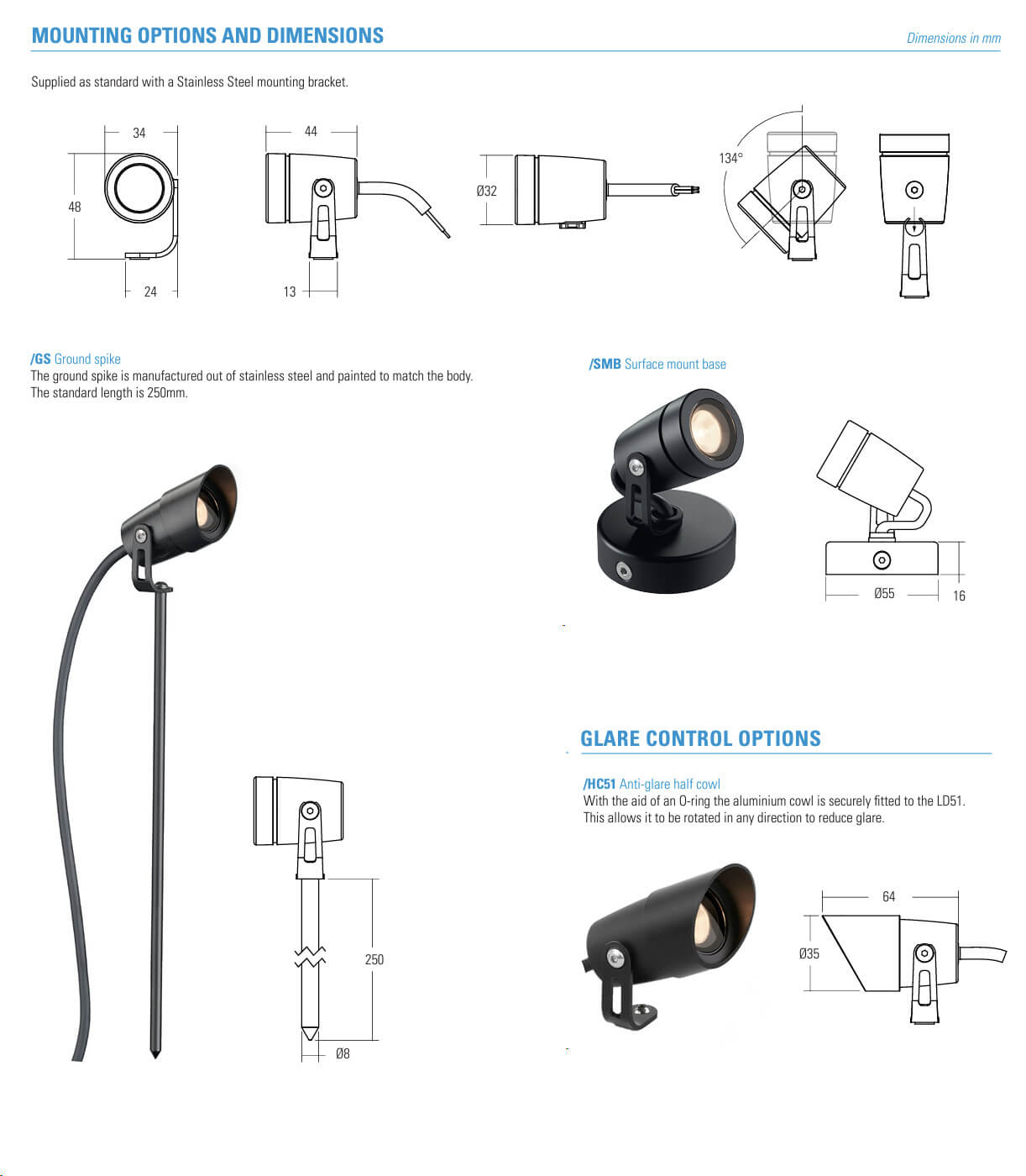

Two accessories are available: A glare cowl which can be rotated to hide glare from odd angles, and a soil spike which is ideal for garden lighting.
The high-power LED is focused with a range of optics that offer excellent beam shape at various angles, thanks to a lockable tilt mechanism, that angles the fitting in the direction of the lit surface.
Technical Info
Technical Info
Miniature adjustable spotlight delivering 188 lumens light output when run at 700mA and a CRI of 90+. Great for lighting beams or garden planting.
Two accessories are available: A glare cowl which can be rotated to hide glare from odd angles, and a soil spike which is ideal for garden lighting.
Quality of light is excellent and longevity is achieved with very good thermal management.
A 90,000 life expectancy and a 3 Year fitting warranty.
Designed and made in the UK.
Driver options
The LD51 is a constant current fitting which requires a driver to run it, drivers can run multiple fittings but fittings must be wired in series. With an appropriate driver the fitting is dimmable via 0-10V, DALI and Mains leading/trailing edge or non-dim. Please select dimming type on options tab above and that will take you through to a page detailing how many fittings you can run per driver.
Installation Notes
The fittings should be wired in series and the cable run between the driver and the fitting should not exceed 10m. The driver should be located somewhere discrete, allowing air movement and be accessible for maintenance
