LD44Y - low glare miniature recessed wall light
IP68 rated miniature low glare recessed wall light suitable for interior and exterior applications
Product Info
The IP68 rated LD44Y has been designed for interior and exterior applications. Available with factory fitted longer cable to allow for longer cable runs back to the driver location for ease of installation or weather-proofing reasons.

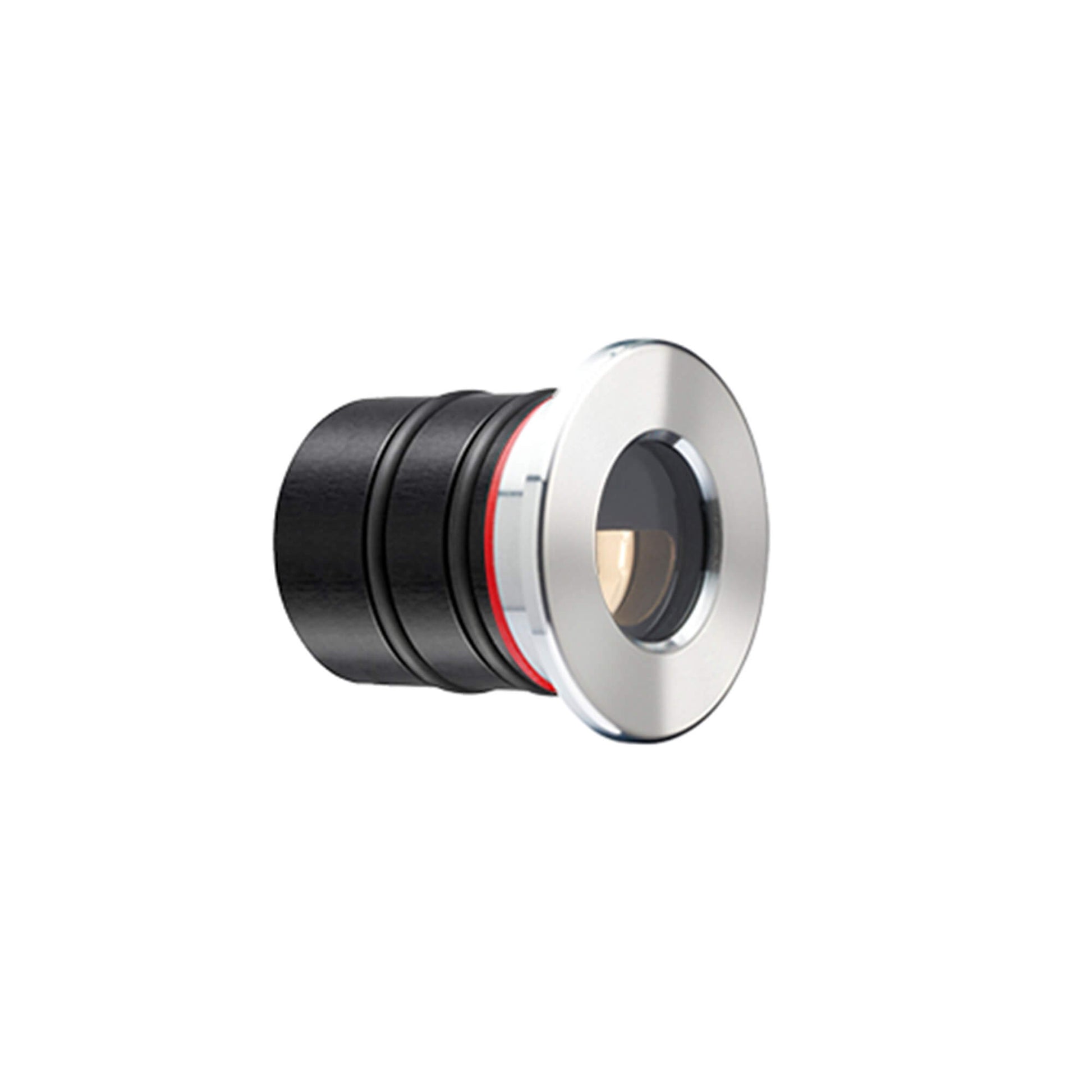

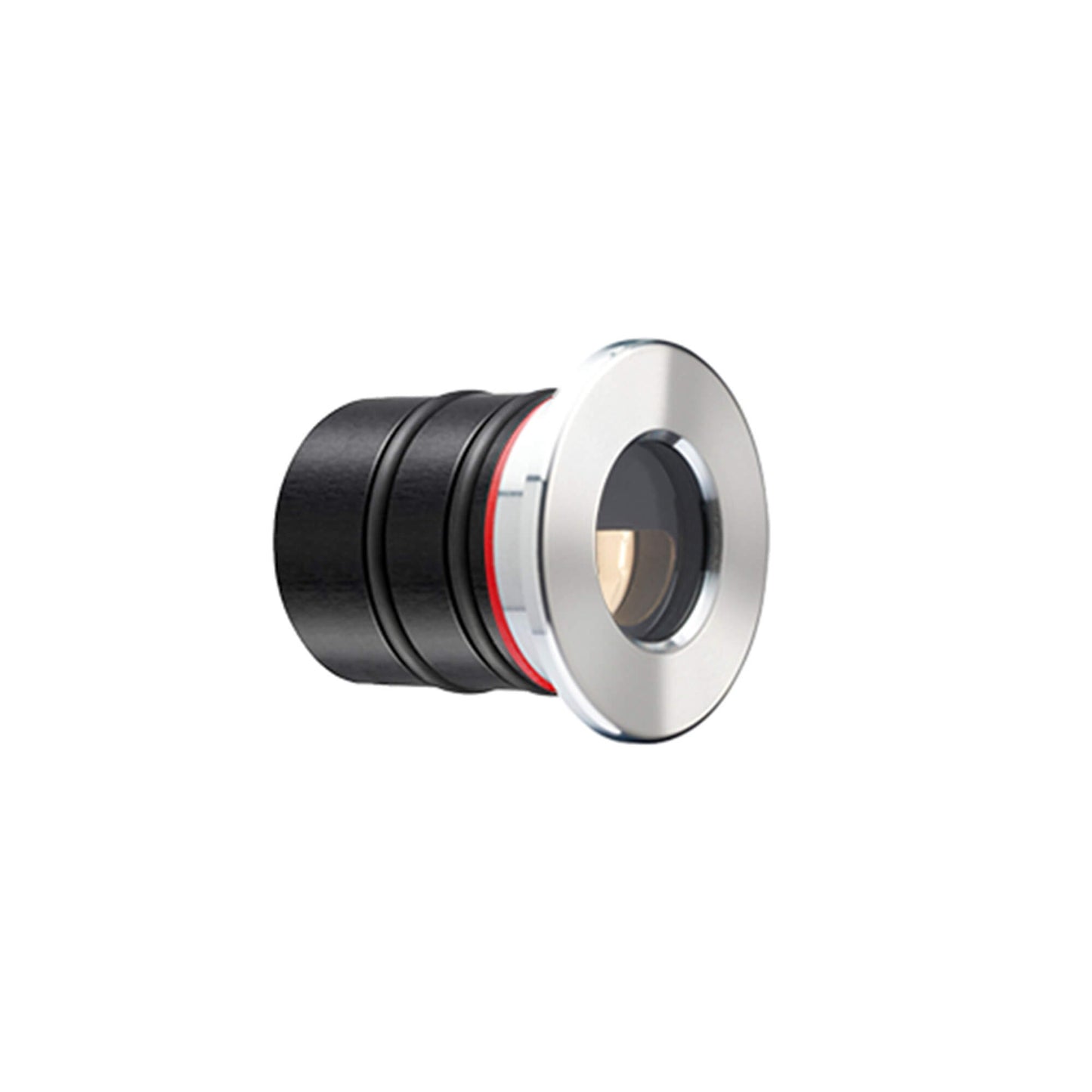

The optics are recessed by 10mm for low glare with optional glare guards to allow aperture reductions of 45% or 70%.
Optional 20° tilt film can be used to focus the light onto the lit surface for a more concentrated effect, ideal for staircase and step lighting.
Technical Info
Technical Info
Driver options
The LD44Y is a constant current fitting which requires a driver to run it, drivers can run multiple fittings but fittings must be wired in series. With an appropriate driver the fitting is dimmable via 0-10V, DALI and Mains leading/trailing edge or non-dim. Please select dimming type on options tab above and that will take you through to a page detailing how many fittings you can run per driver.
Installation Notes
The fittings should be wired in series and the cable run between the driver and the fitting should not exceed 10m. The driver should be located somewhere discrete, allowing air movement and be accessible for maintenance
