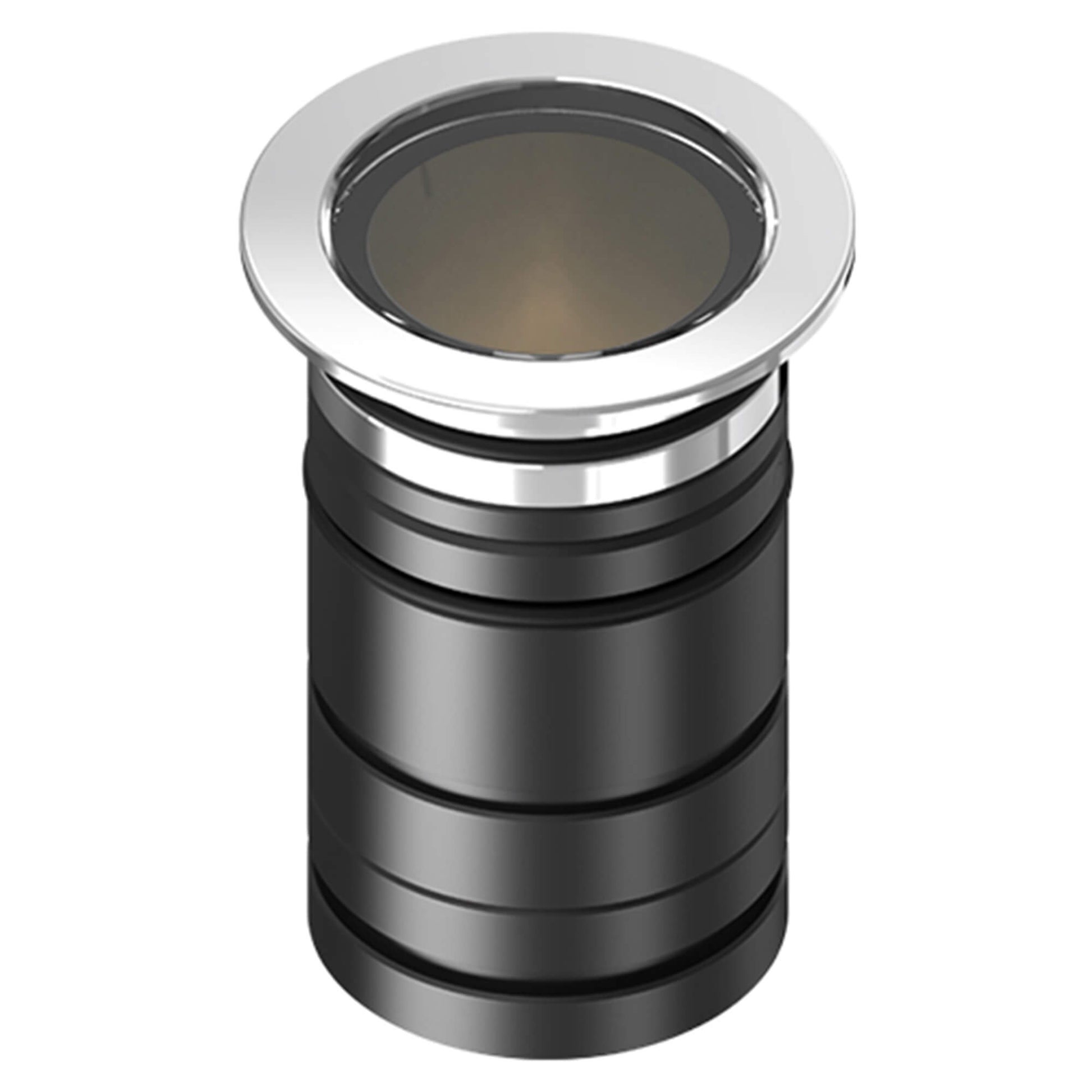

LD141DR-E3 deep recessed compact LED uplight
Compact in size but powerful in output exterior rated uplight
Product Info
Compact in size the LD141DR uplight has been designed for applications that require super low glare, with the lens assembly recessed 51mm into the body.

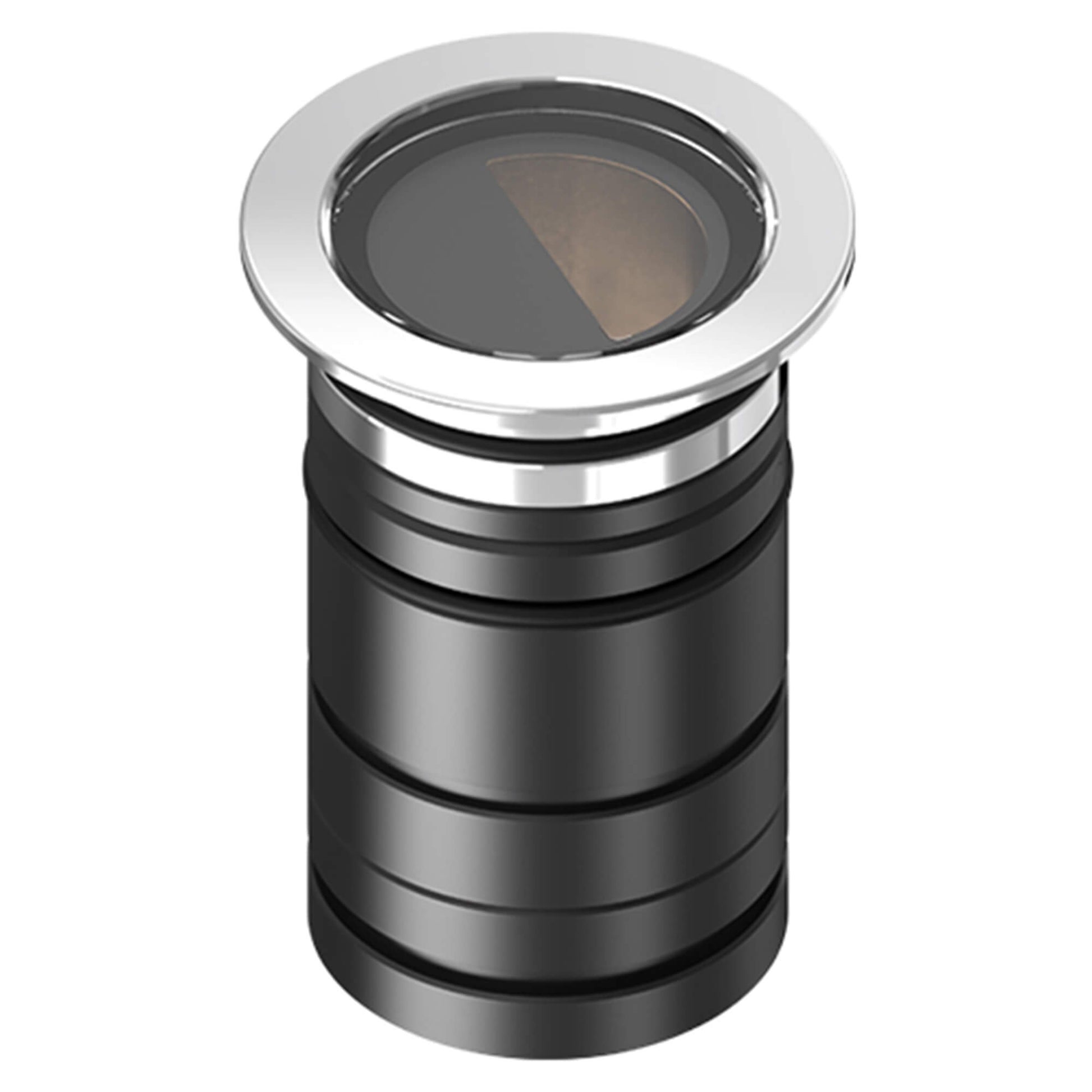

Available with a wide range of accessories including a glare shield, fixing options and bezel finishes.
IP67 rated making it suitable for a range on exterior and interior applications.
We offer of optional longer lead lengths which allow longer able runs back to the driver location for ease of installation or weather-proofing reasons.
Technical Info
Technical Info
Driver options
The LD141X is a constant current fitting which requires a driver to run it, drivers can run multiple fittings but fittings must be wired in series. With an appropriate driver the fitting is dimmable via 0-10V, DALI and Mains leading/trailing edge or non-dim. Please select dimming type on options tab above and that will take you through to a page detailing how many fittings you can run per driver.
Installation Notes
The fittings should be wired in series and the cable run between the driver and the fitting should not exceed 10m. The driver should be located somewhere discrete, allowing air movement and be accessible for maintenance
