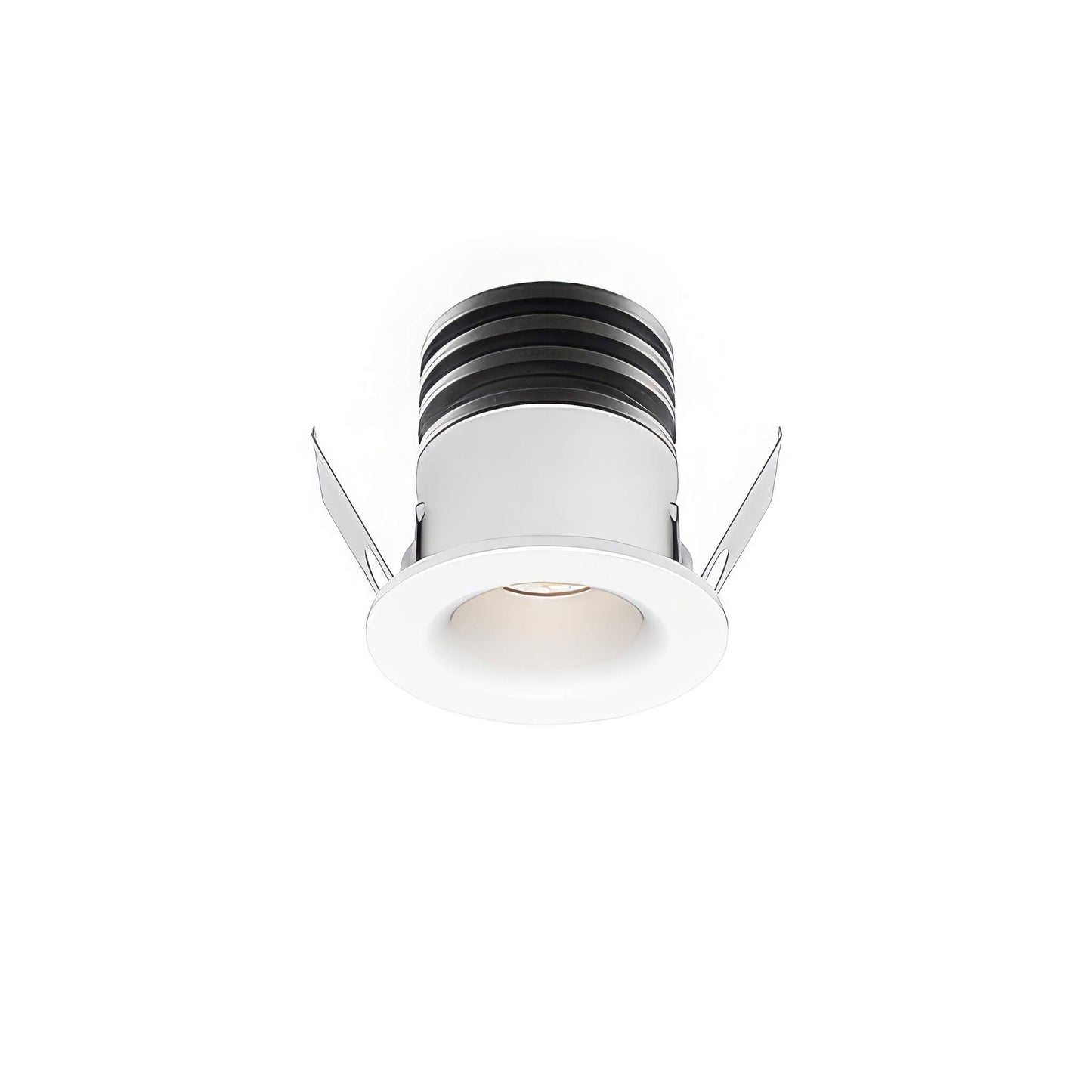

LD72M fixed mini LED downlight
The LD72M is a miniature low glared LED downlight idea for niches or creating a discrete wall wash
Product Info
Miniature fixed LED downlight, ideal for display, niches and shower niche (IP54 option).

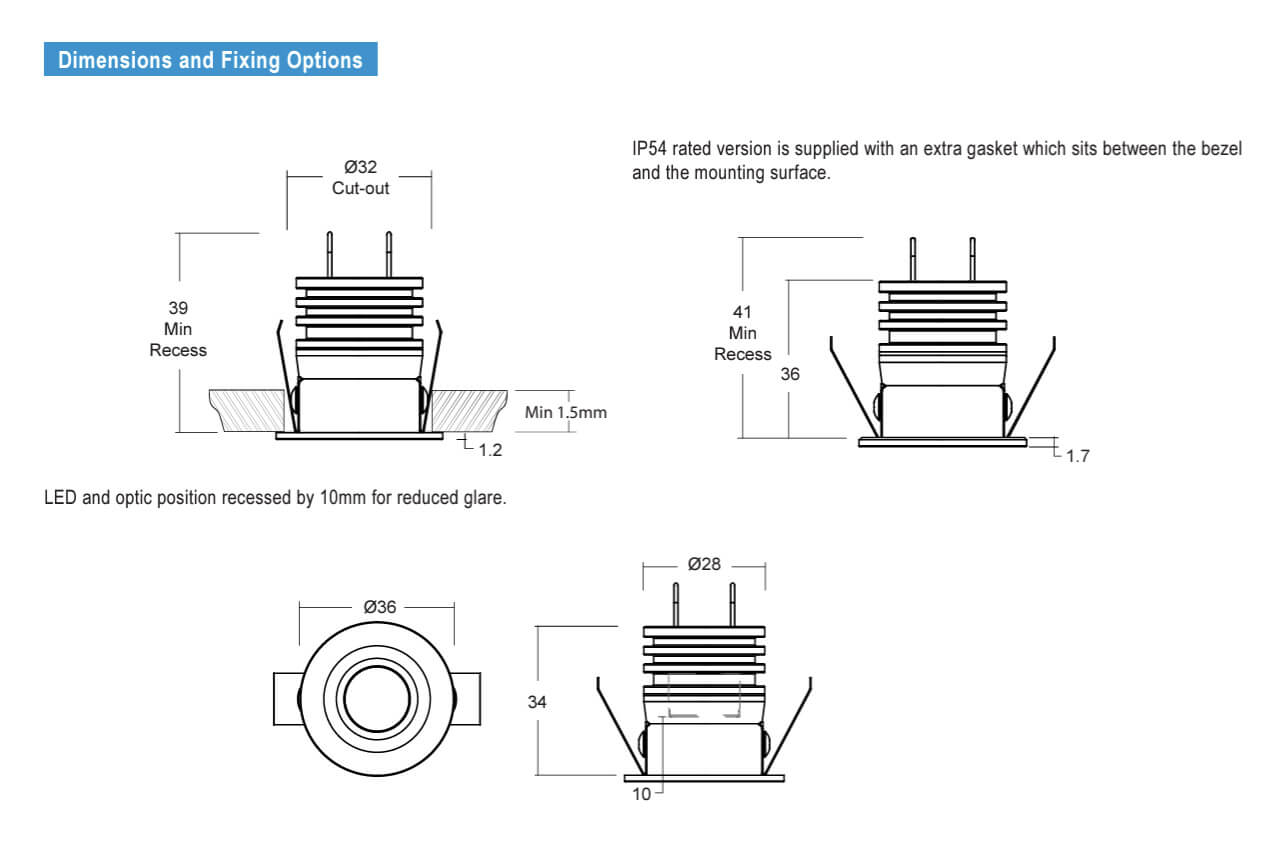

It is very discreet with the LED recessed by 10mm to reduce glare, with a maximum tilt of 25° and a painted bezel which can be matched to the mounting surface. IP40 as standard, but can be specified IP54 for bathrooms or wet environments.
Typical CRI of 93. Longevity is achieved with very good thermal management, the fittings have a 90,000 life expectancy and a 3 Year fitting warranty.
Technical Info
Technical Info
LD72M is a miniature adjustable LED downlight with 25° tilt, ideal for niches and other accent downlighter effects.
LD72M uses a hidden fixing method using spring clips with no visible screws. Optional IP54 rated for wet environments like bathrooms and spas.
To get the perfect results to suit your application you choose the product attributes (eg - output, beam width etc) The higher the current (mA) the fitting is run at, the more light you will get.
Driver options
The LD72M is a constant current fitting which requires a driver to run it; drivers can run multiple fittings but fittings must be wired in series. With an appropriate driver the fitting is dimmable via 0-10V, DALI and Mains leading/trailing edge or non-dim. Please select dimming type on options tab above and that will take you through to a page detailing how many fittings you can run per driver.
Installation Notes
The fittings should be wired in series and the cable run between the driver and the fitting should not exceed 10m. The driver should be located somewhere discrete, allowing air movement and be accessible for maintenance.
