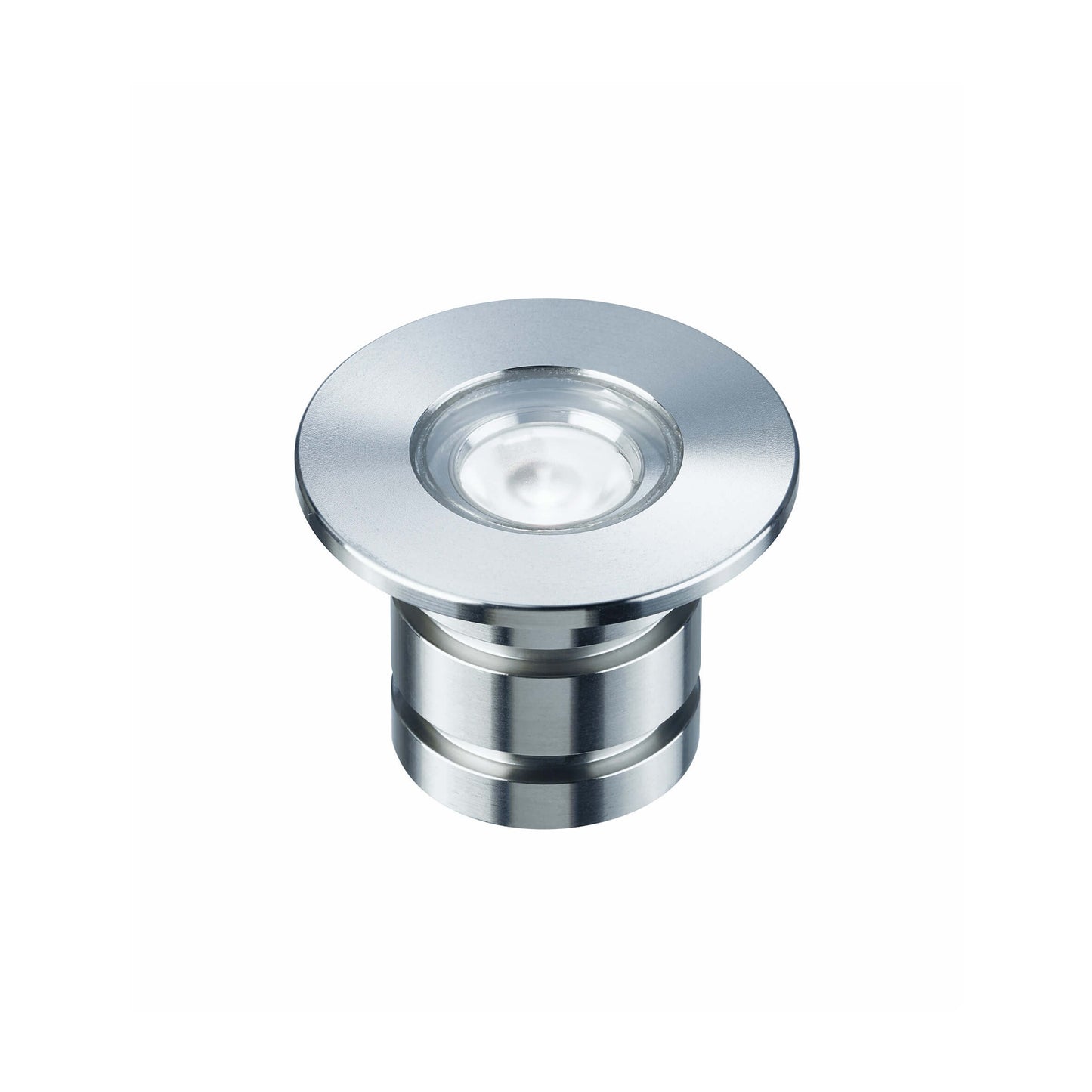

LD60 LED accent uplight
A tiny, high quality but simple LED fitting useful for a wide range of accent lighting
Product Info
A tiny, high quality but simple LED fitting useful for a wide range of accent lighting. Delivers 141 lumens when run at 500mA.
With a slightly larger bezel than the LD41, the LD60 completely covers the first fix sleeve making it slightly more 'forgiving' of a not completely perfect cut out. This is a robust, versatile fitting with a 5mm thick glass and no visible fixings, available in a choice of beam angles and colour temperatures.
Technical Info
Technical Info
LD60 is a miniature recessed walkover LED uplight with flush glass. To get the perfect results to suit your application you choose the product attributes (eg - output, beam width etc) The higher the current (mA) the fitting is run at the more light you will get.

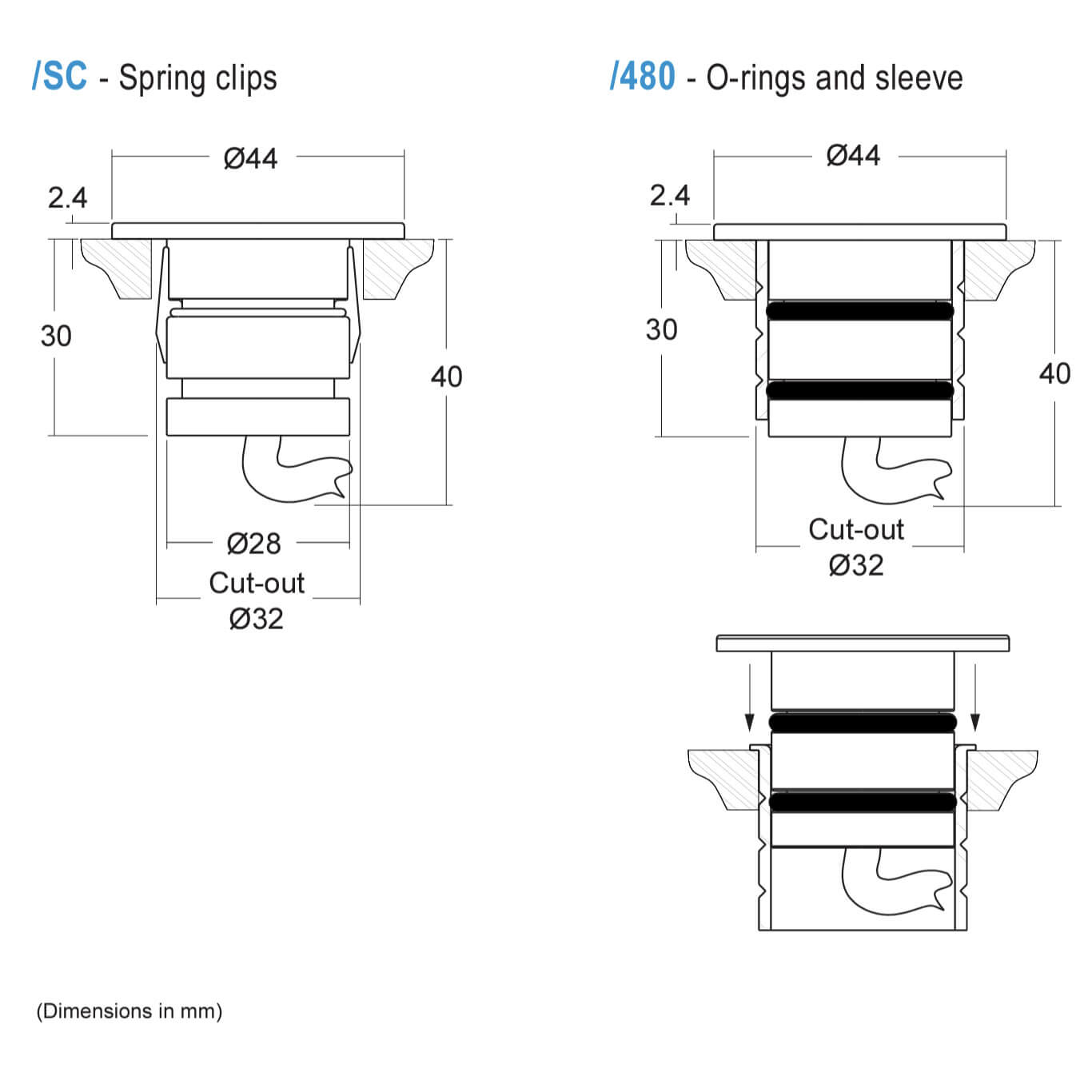

The fitting uses a hidden fixing method with no screws. This is achieved by either using the standard spring clips or the optional fixing sleeve ideal for solid flooring.
LD60 is IP68 rated making it suitable for both interior and exterior use.
With delivered lumens of 141 (when run at 500mA) and a CRI of 90+ the quality of light is excellent and longevity is achieved with very good thermal management. LED lifetime (to 70% lumen maintenance) 50,000hrs at a max ambient temperature of 35°C.
Designed and manufactured in the UK.
Driver options
The LD60 is a constant current fitting which requires a driver to run it, drivers can run multiple fittings but fittings must be wired in series. With an appropriate driver the fitting is dimmable via 0-10V, DALI and Mains leading/trailing edge or non-dim. Please select dimming type on options tab above and that will take you through to a page detailing how many fittings you can run per driver.
Installation Notes
The fittings should be wired in series and the cable run between the driver and the fitting should not exceed 10m. The driver should be located somewhere discrete, allowing air movement and be accessible for maintenance
