LD57 - no optic low glare wall light
Ideal for gentle step lighting
Product Info

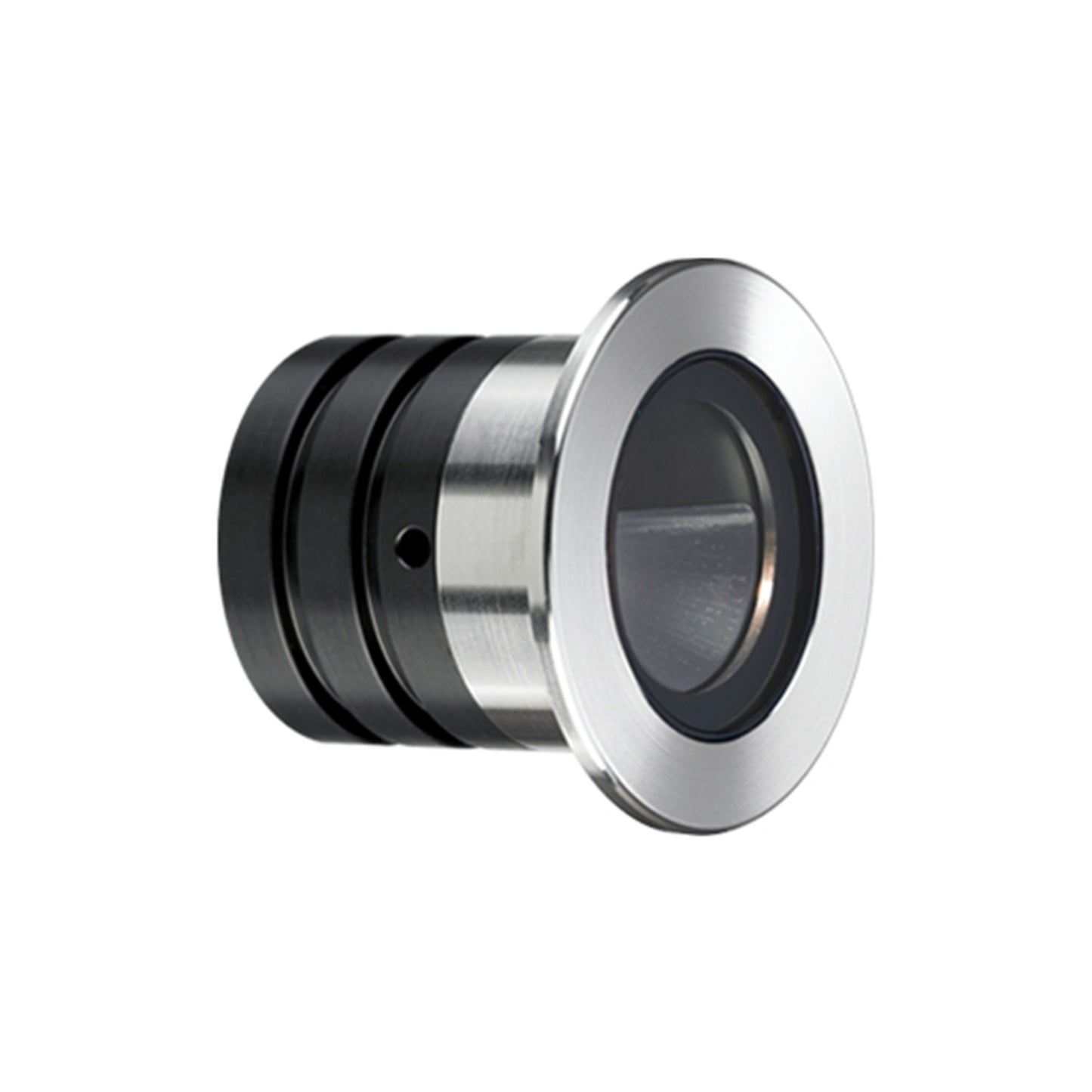

The LD57 is designed to have no glare and no visible fixings. Whilst the lack of lens means output is lower it is adequate for step lighting without any glare form the Lightsource which is hidden behind the shield. We recommend running the LD57 at 700mA.
IP68 rated making it suitable for exterior and shower use as well as interior applications.
Stainless steel, solid bronze and paint finish bezels available.
Available with factory fitted longer cable to allow for cable runs back to the driver location for ease of installation or weather-proofing reasons.
Technical Info
Technical Info
Driver options
The LD is a constant current fitting which requires a driver to run it, drivers can run multiple fittings but fittings must be wired in series. With an appropriate driver the fitting is dimmable via 0-10V, DALI and Mains leading/trailing edge or non-dim. Please select dimming type on options tab above and that will take you through to a page detailing how many fittings you can run per driver.
Installation Notes
The fittings should be wired in series and the cable run between the driver and the fitting should not exceed 10m. The driver should be located somewhere discrete, allowing air movement and be accessible for maintenance
