LD47 low glare fixed tilt LED wall/step light
The LD47 lens assembly is recessed and inclined by 20° for a floor wash illumination with minimal glare
Product Info

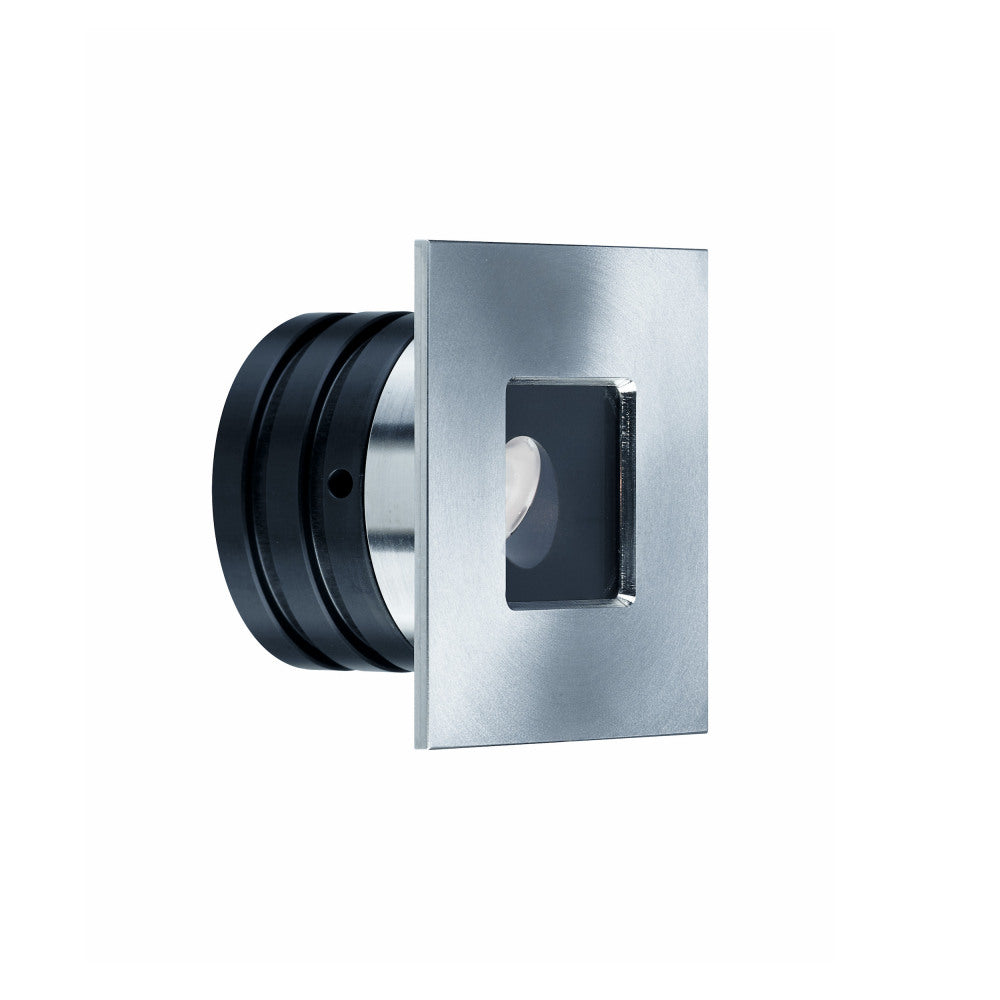

A square bezel extremely low glare discrete fitting with a recessed optic and a 20° tilt. Perfect for stair lighting. Delivers 177 lumens when run at 700mA.
IP67 rated as standard making it suitable for interior and exterior use.
The angled optic enables the fitting to be mounted slightly higher over a tread (c.200-250mm above) and for the light to still wash across the surface. The tilt also reduces glare when the fitting is seen front on.
Technical Info
Technical Info
A very classy LED fitting useful for a wide range of accent lighting with no visible fixings and the glass is fixed with a hidden gasket, so no unsightly glue line is visible. IP67 rated as standard making it suitable for interior and exterior use
The fitting comes either with spring clips or held in place by ‘O’ Rings and an installation sleeve. Comes pre-wired with a 2 core 100mm cable. The higher the current (mA) the fitting is run at the more light you will get but the warmer the fitting gets.
Driver options
The LD47 is a constant current fitting which requires a driver to run it, drivers can run multiple fittings but fittings must be wired in series. With an appropriate driver the fitting is dimmable via 0-10V, DALI and Mains leading/trailing edge or non-dim. Please select dimming type on options tab above and that will take you through to a page detailing how many fittings you can run per driver.
Installation Notes
The fittings should be wired in series and the cable run between the driver and the fitting should not exceed 10m. The driver should be located somewhere discrete, allowing air movement and be accessible for maintenance
