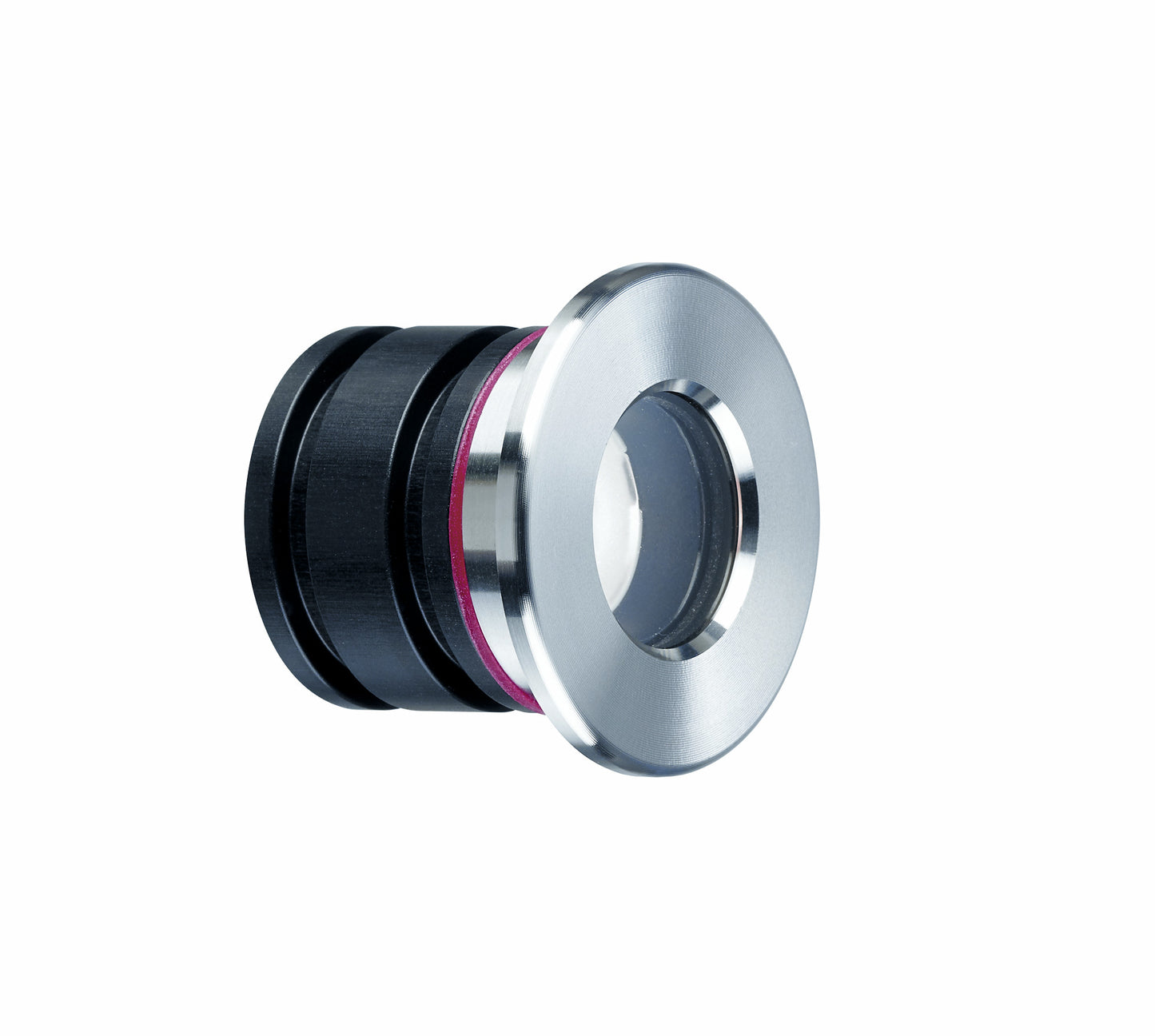

LD42 miniature recessed LED wall light
The LD42 fitting is a miniature recessed LED wall light, ideal for discreet lighting of steps and pathways in interior, exterior and marine applications
Product Info
The LD42 fitting is a miniature recessed LED wall light, ideal for discreet lighting of steps and pathways in interior, exterior and marine applications.

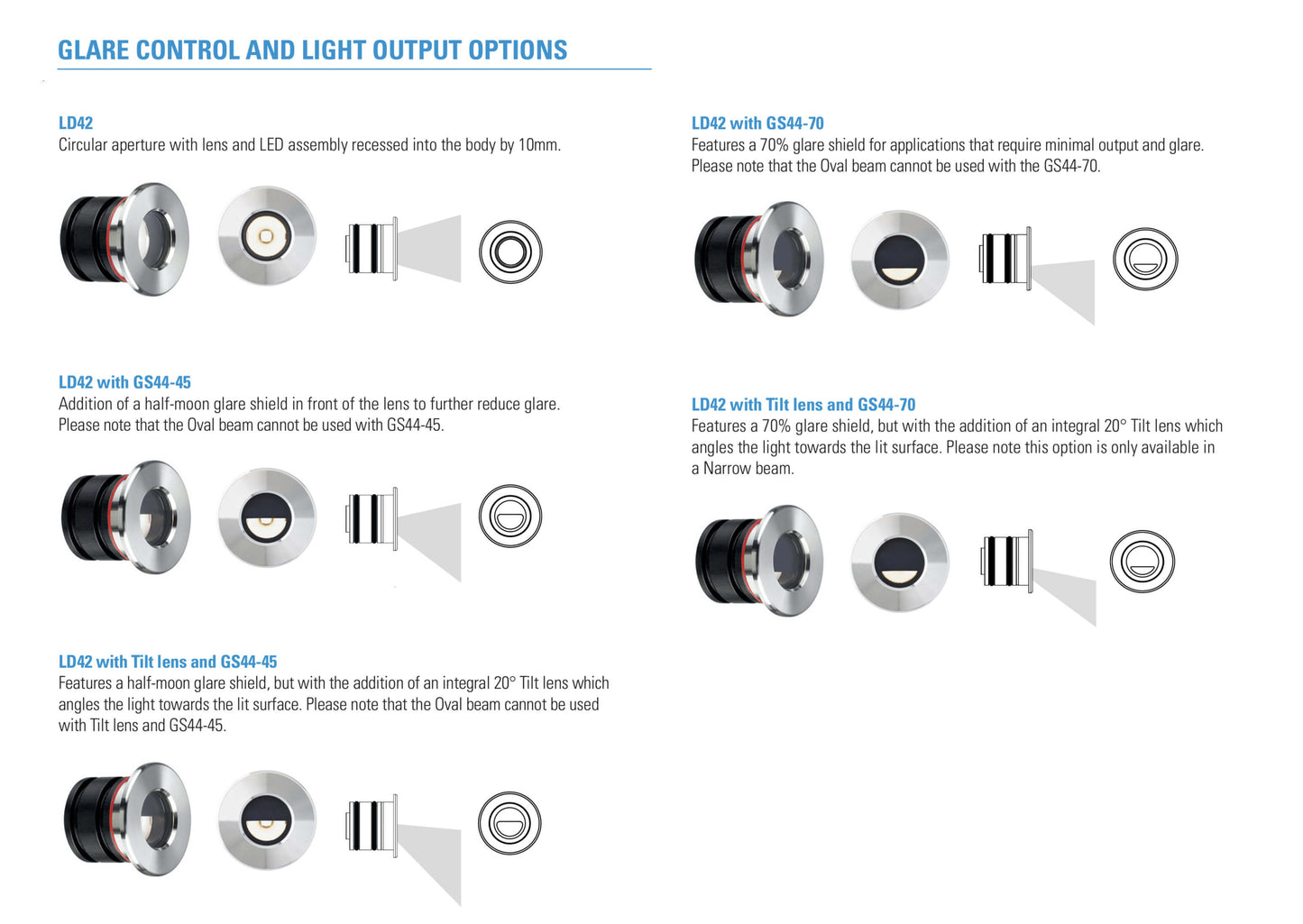

The lens assembly is recessed 10mm within the body for low glare, which can be further reduced with a unique combination of glare shield and Tilt lens options to suit individual application requirements. This includes aperture reductions of 45% or 70%, with or without an integral 20° Tilt lens, which focuses the light onto the lit surface for a concentrated lit effect.
For a miniature fitting, LD42 produces an excellent throw of light when more outputis required and with a high IP rating, is ideal for use in the harshest of environments.
Technical Info
Technical Info
LD42 is a miniature recessed walkover LED uplight with flush glass and shallow depth with the LED set back to reduce glare. To get the perfect results to suit your application you choose the product attributes (eg - output, beam width etc) The higher the current (mA) the fitting is run at the more light you will get.

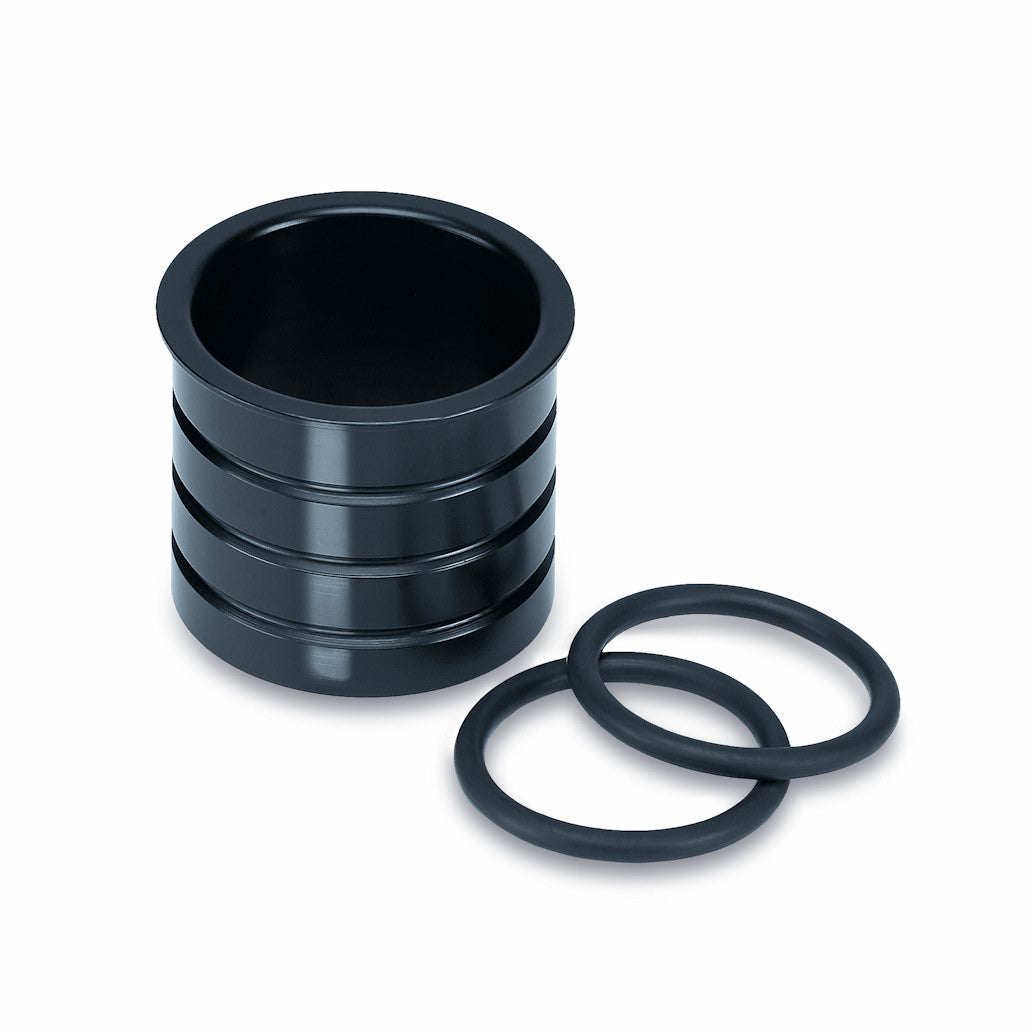

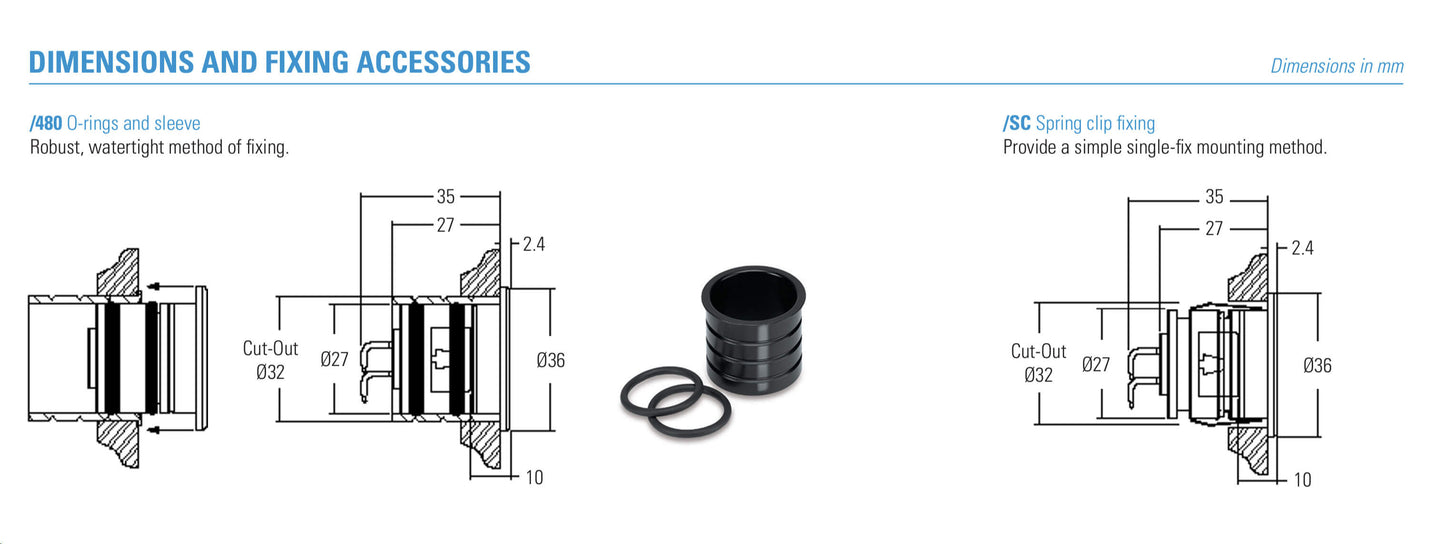

The fitting uses a hidden fixing method with no screws. This is achieved by either using the standard spring clips or the optional fixing sleeve ideal for solid walls.
LD42 is IP68 rated making it ideal for internal and external applications.
With delivered lumens of 134 (when run at 500mA) and a CRI of 93 the quality of light is excellent and longevity is achieved with very good thermal management. LED lifetime (to 70% lumen maintenance) 50,000hrs at a max ambient temperature of 35°C.
Designed and manufactured in the UK.
Driver options
The LD42 is a constant current fitting which requires a driver to run it, drivers can run multiple fittings but fittings must be wired in series. With an appropriate driver the fitting is dimmable via 0-10V, DALI and Mains leading/trailing edge or non-dim. Please select dimming type on options tab above and that will take you through to a page detailing how many fittings you can run per driver.
Installation Notes
The fittings should be wired in series and the cable run between the driver and the fitting should not exceed 10m. The driver should be located somewhere discrete, allowing air movement and be accessible for maintenance
