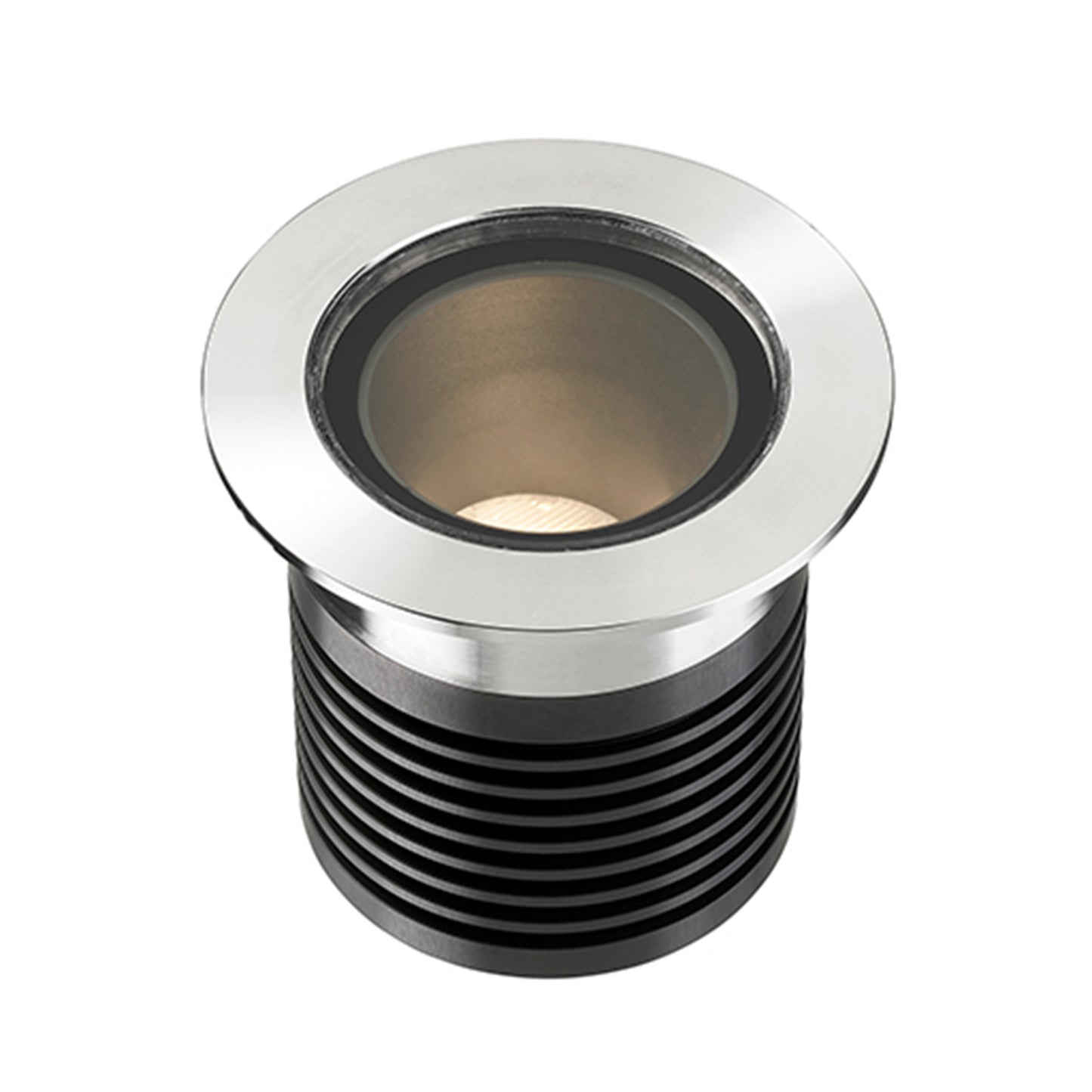

LD151T-E3 LED uplight
LD151 is a tough, high quality powerful uplight with LED and optic set at a 6° tilt
Product Info
The LD151T is a powerful uplight with a compact size and depth that has been designed with LED and optics at a 6°. The It can be specified with a wide range of options allowing it to suit most project requirements.
The bezel aesthetic is minimal featuring black trim glass and no visible fixings. This is a very tough, high quality fitting, machined from high grade materials, ensuring excellent thermal and light output performance.
We offer a range of optional longer lead lengths which allow longer cable runs back to the driver location for ease of installation or weather-proofing reasons.
Technical Info
Technical Info
Driver options
The LD151T is a constant current fitting which requires a driver to run it, drivers can run multiple fittings but fittings must be wired in series. With an appropriate driver the fitting is dimmable via 0-10V, DALI and Mains leading/trailing edge or non-dim. Please select dimming type on options tab above and that will take you through to a page detailing how many fittings you can run per driver.
Installation Notes
The fittings should be wired in series and the cable run between the driver and the fitting should not exceed 10m. The driver should be located somewhere discrete, allowing air movement and be accessible for maintenance
