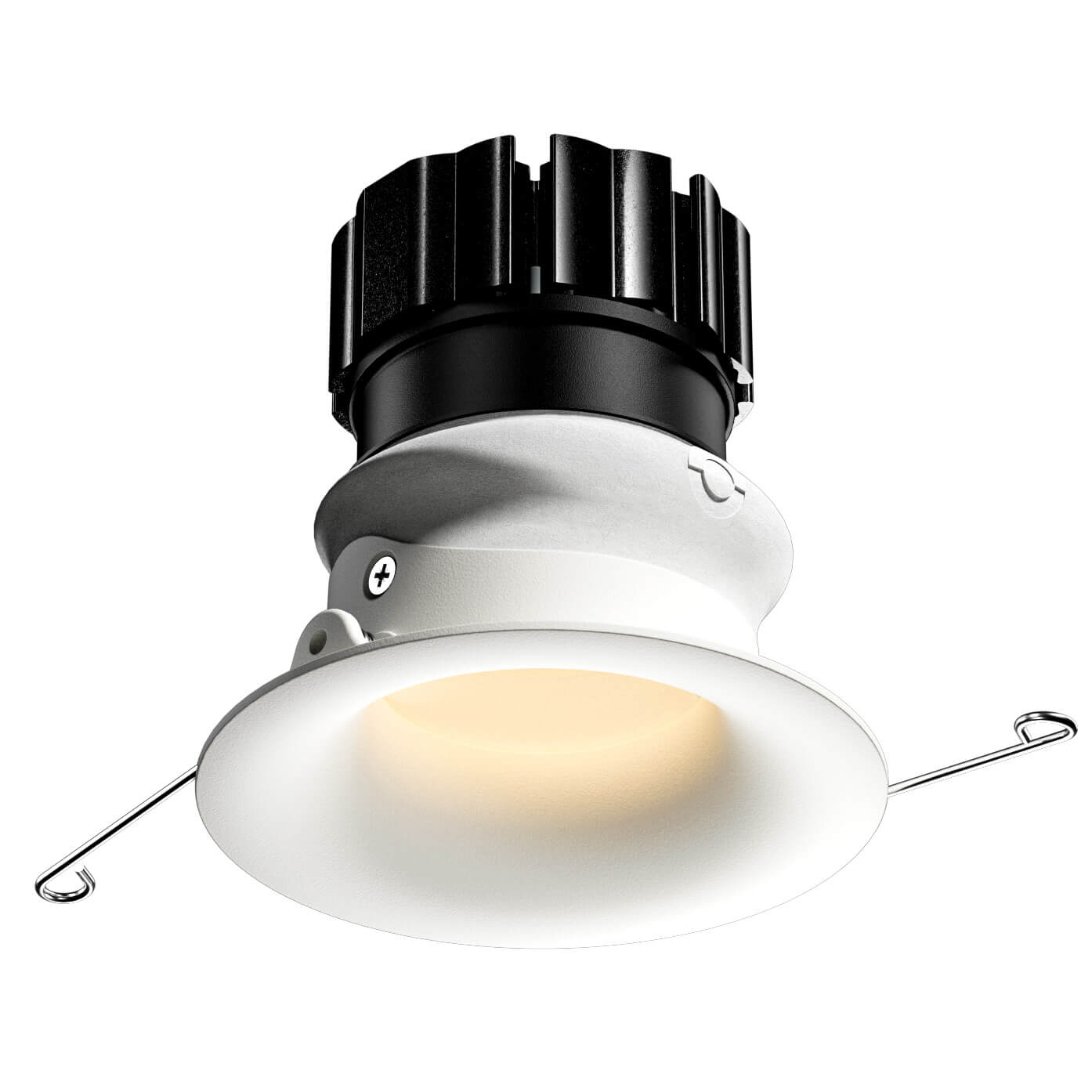

Curve Adjustable LED downlight
A contemporary style adjustable downlight with a curved bezel and the ability to tilt from behind the scenes
Product Info
A contemporary style adjustable downlight with the ability to tilt from behind the scenes
Totally customisable with choices of LED colour, lenses all with great dimming performance
As standard the light engines typically deliver 1013 lumens with a CRI of 98. The LEDs used within the Origin range give exceptionally high colour rendering and the best red rendering, CRI: 98 & R9: 99. Reds are highly important in accurate representation of many colours including true whites.
Unusually the Origin range of fittings can be dimmed well without using a lighting control system: use the recommended mains trailing edge driver and a recommended Quad rotary dimmer (more details are given after you have added fittings to your Basket).
Longevity is achieved with very good thermal management: the fittings have a 70,000 life expectancy and a 5 Year fitting warranty
Designed and made in the UK.
Technical Info
Technical Info

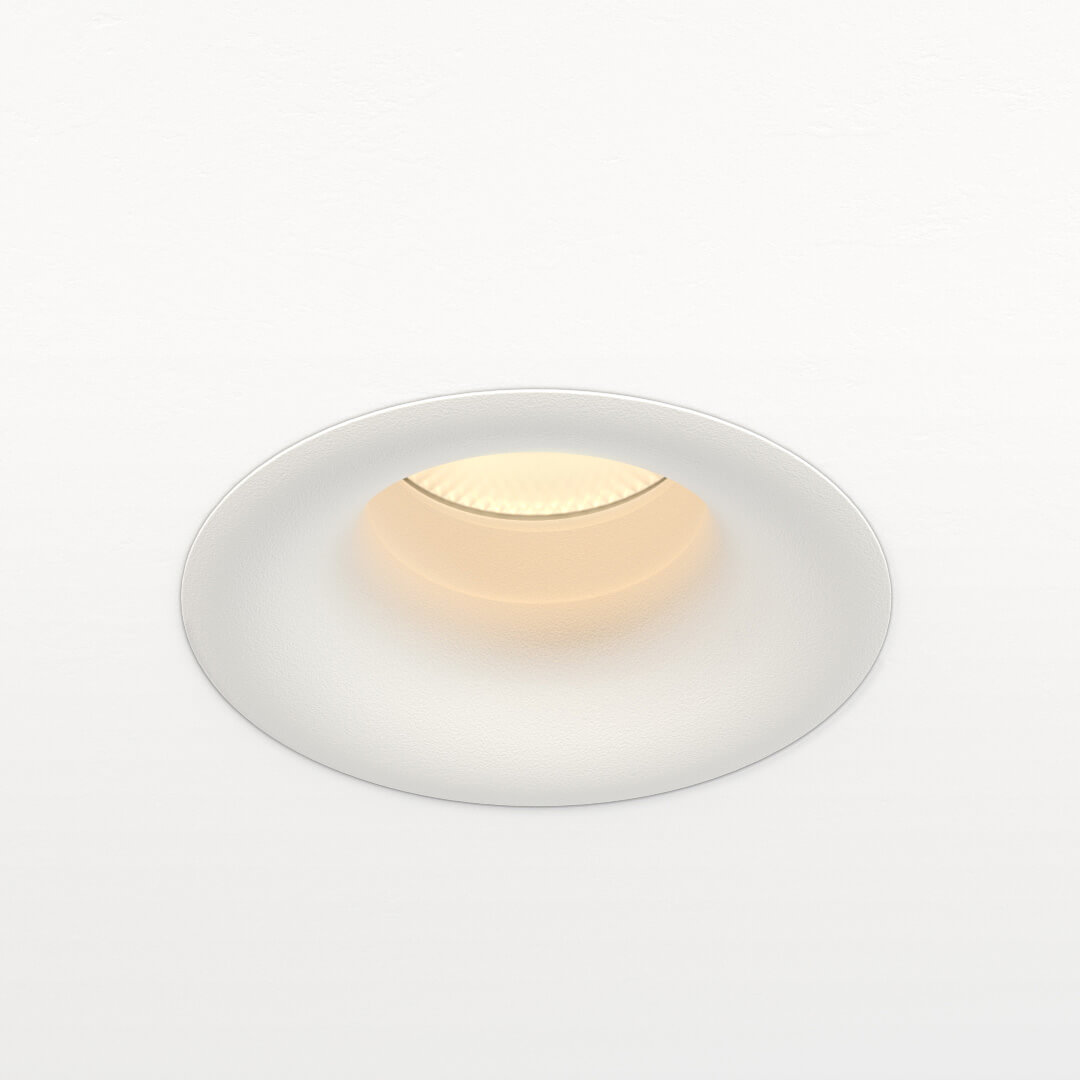

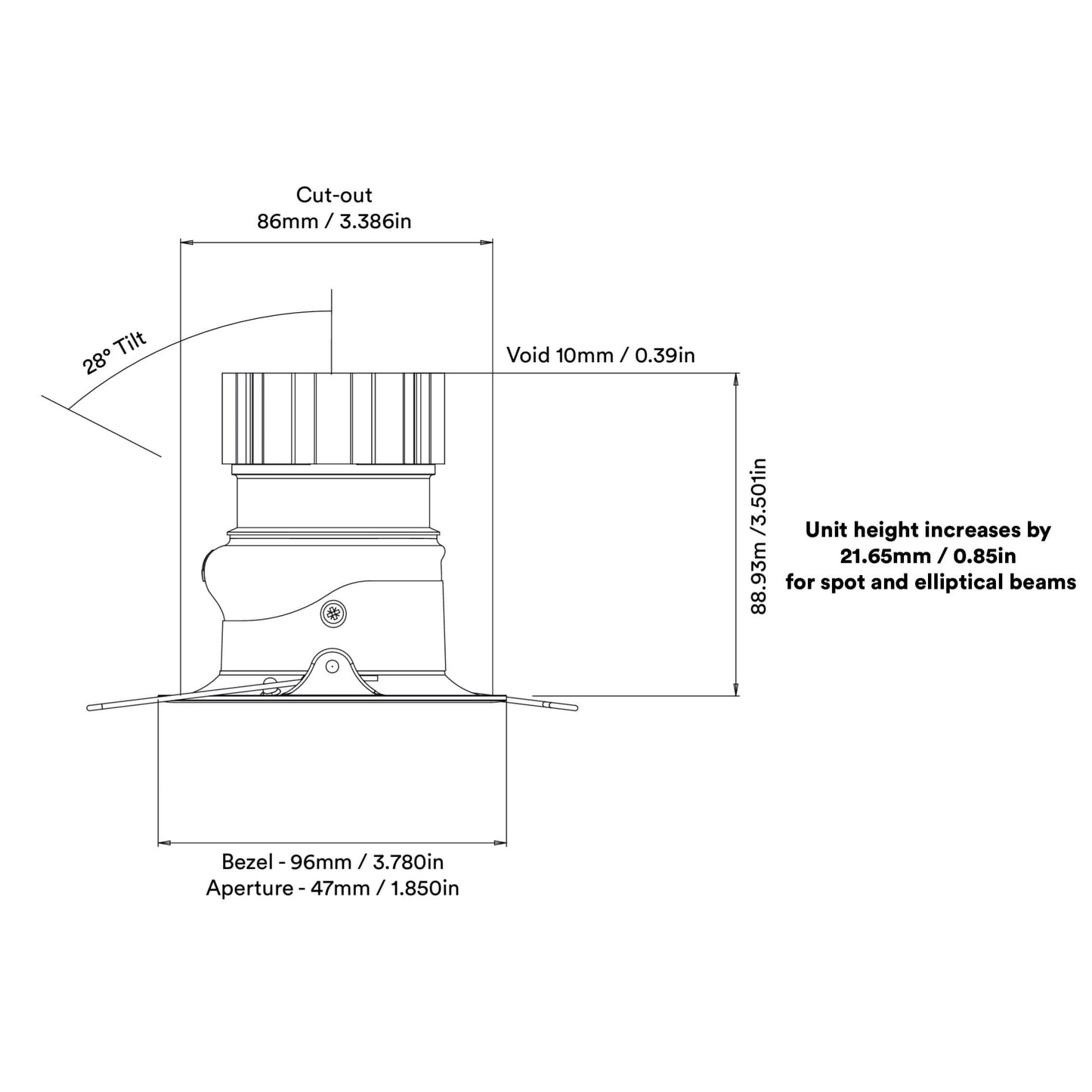

A neat adjustable downlight with adjustment made from behind the scenes; even when tilted, you still only see the bezel on the ceiling surface
Flexibility
The Curve tilt and rotate provides freedom to customise every spotlight individually. Our standard White is RAL9010 fine texture with 20% gloss and there is an option of Black RAL9005. For a totally customised finish we can offer any other RAL colour (setup charges may apply, please call for details).
Output
Max output (Lumens) at 3000K
Spot:- 302lm
Medium :- 1013lm
Wide:- 1026lm
Flood:- 999lm
Elliptical Linear:- 354lm
Driver options
Drivers can be located behind the downlighters cut-outs in the ceiling void, but take care to leave adequate void space around both fitting and driver.
With an appropriate driver the fitting is dimmable via mains trailing edge, 0-10V and DALI or non-dim.
Unusually the Origin range of fittings can be dimmed well without using a lighting control system: use the recommended mains trailing edge driver and a recommended Quad rotary dimmer (more details are given after you have added fittings to your Basket).
With 0-10V and DALI dimming you will need a lighting control system (for example Lutron)
Longevity
This is achieved with very good thermal management: the fittings have a 70,000 life expectancy and a 5 Year fitting warranty
